ISDT K4 LiPo Charge/Discharge Cycle Mode Charger,AC 400W DC 600Wx2 Smart Remote Mobile Operation Charger

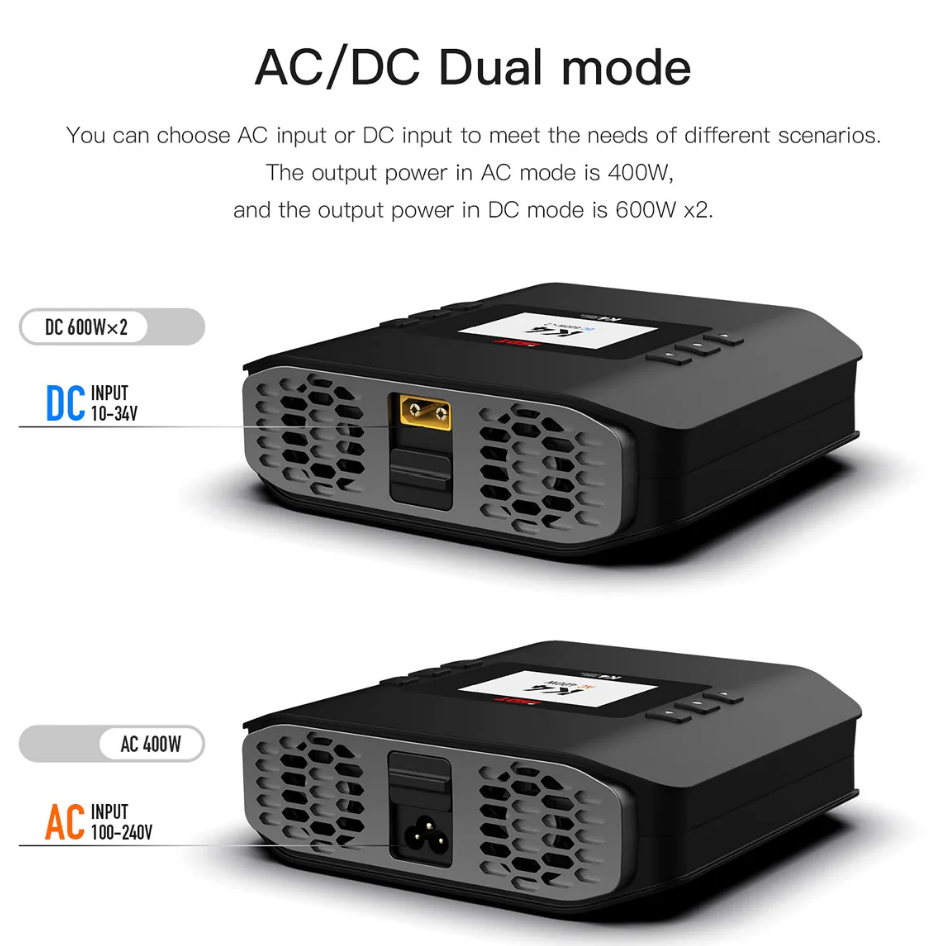

AC/DC Dual Modes Lipo Charger

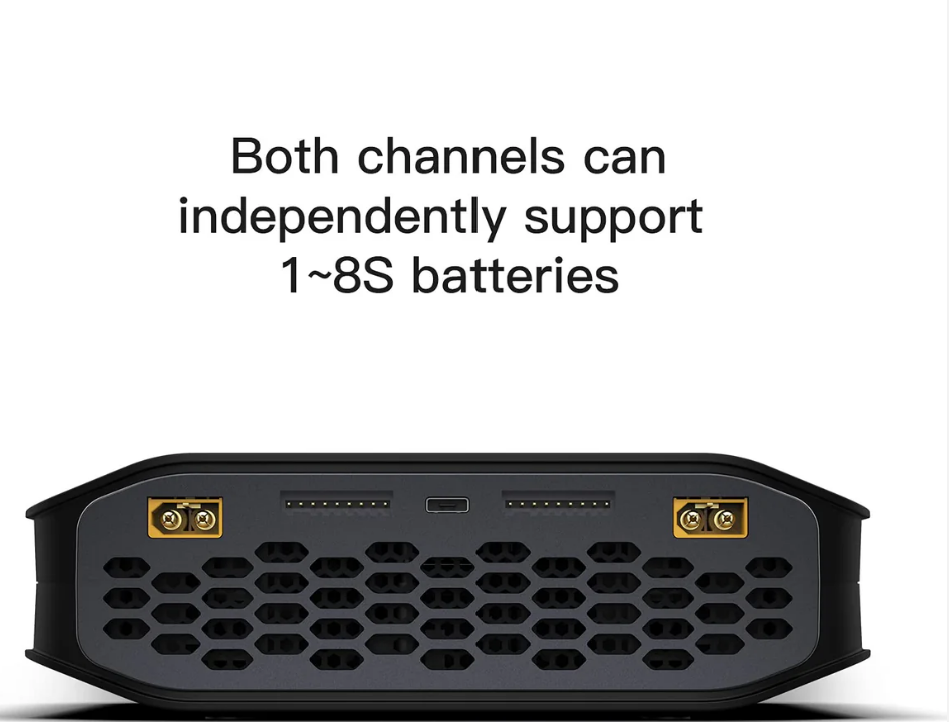

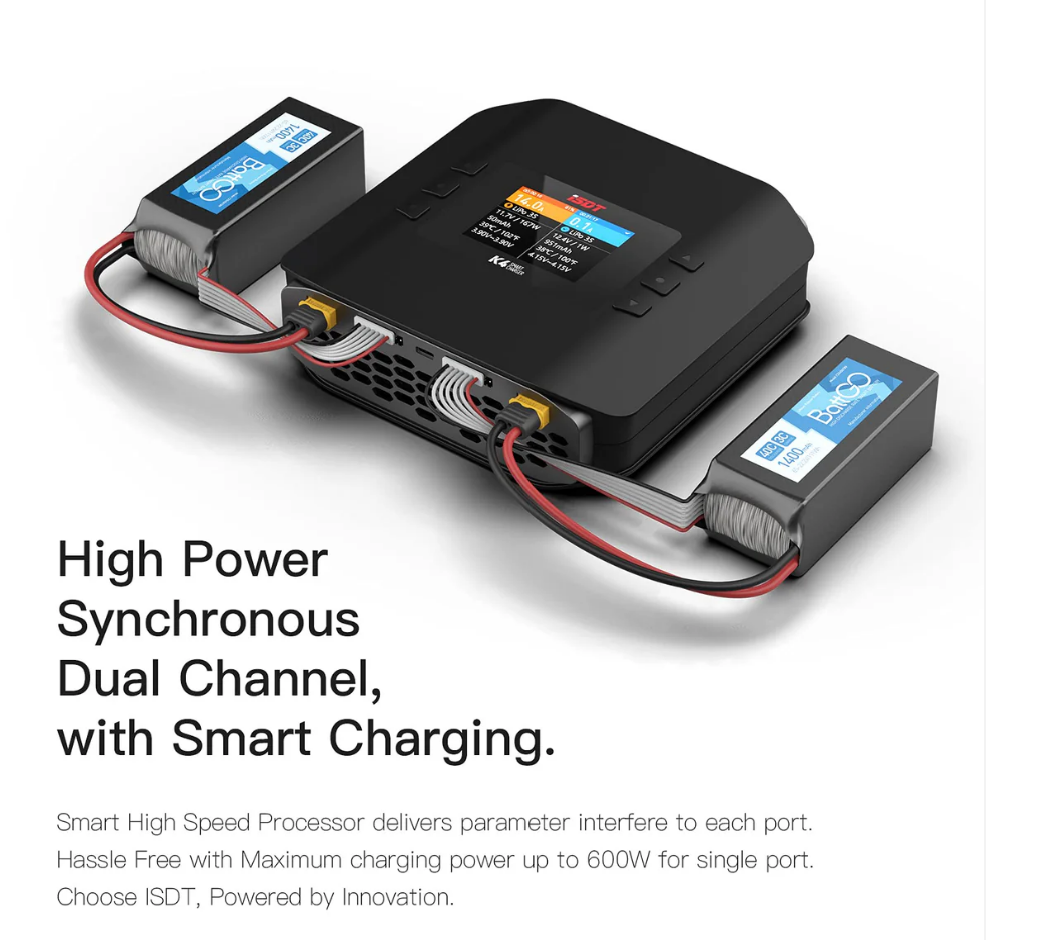

Experience versatile charging with our lipo charger, featuring dual input modes of AC 400W and DC 600Wx2. It offers independent dual channels with a charging current of 30A per channel and a maximum input current of 60A. The advanced cooling air duct ensures efficient heat dissipation. With firmware upgrade capability, the K4 charger maintains optimal performance and keeps the firmware up-to-date.

ISDT K4 Smart Display

Our charger comes equipped with a full-color LCD touch panel, displaying the entire charging process. The large screen shows voltage, current, charging time, mode, battery type, internal resistance, and battery capacity. It supports easy setup and manual operation modes.

Multi-Function Charger

The K4 charger supports BattAir BT connectivity and mobile operation via the ISD Link APP. It includes Li-ion and LiPo balancing, fast charging, data storage, cycle charging, and discharging functions. It also features an automatic stop function once the battery is fully charged.

Wide Battery Compatibility

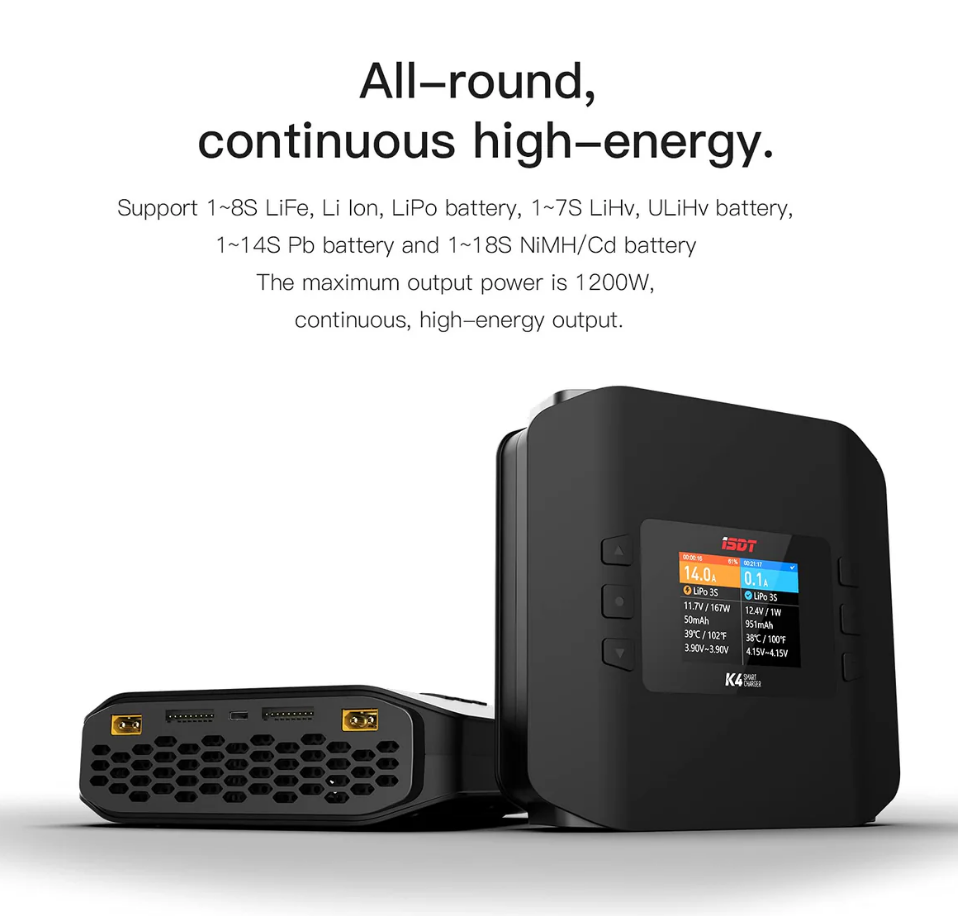

This charger is compatible with various battery types: LiFe, LiIon, LiPo. It features automatic battery type identification and an intelligent charge algorithm matching.

Multi-Application

With an aluminum alloy shell for a premium feel and appearance, this product is ideal for RC planes, drones, portable power devices, remote control cars, and more. It offers auto-adjustment on charging parameters and auto safety shut-off to ensure optimal charging performance, helping to extend battery life.

Specifications

• Input Voltage: AC 100~240V / DC 10~30V
• Output Voltage: DC 1~30V
• Max. Input Current: DC 35A
• Charging Current: 0.2~20A x2
• Discharging Current: 0.2~3A x2
• Balance Current: 1.5A/Cell Max
• Max. Discharging Power: 30W x2
• Max. Charging Power: AC 400W / DC 600W x2
• Abnormal Voltage Alarm: Supported
• Incorrect Cell Count Setting Alarm: Supported
• Supported Battery Types and Cell Count: LiFe, LiIon, LiPo (1~8S), LiHv (1-8S), Pb (1-12S), NiMH/Cd (1-16S)
• Parallel Charging Power and Current: 800W/35A
• Parallel Discharge Power and Current: 30W/3A
• Working Temperature: 0~40℃
• Storage Temperature: -20℃~60℃
• Dimensions: 142x135x64mm
• Weight: Approximately 700g

Packaging Includes:

• 1x ISDT K4 Charger
