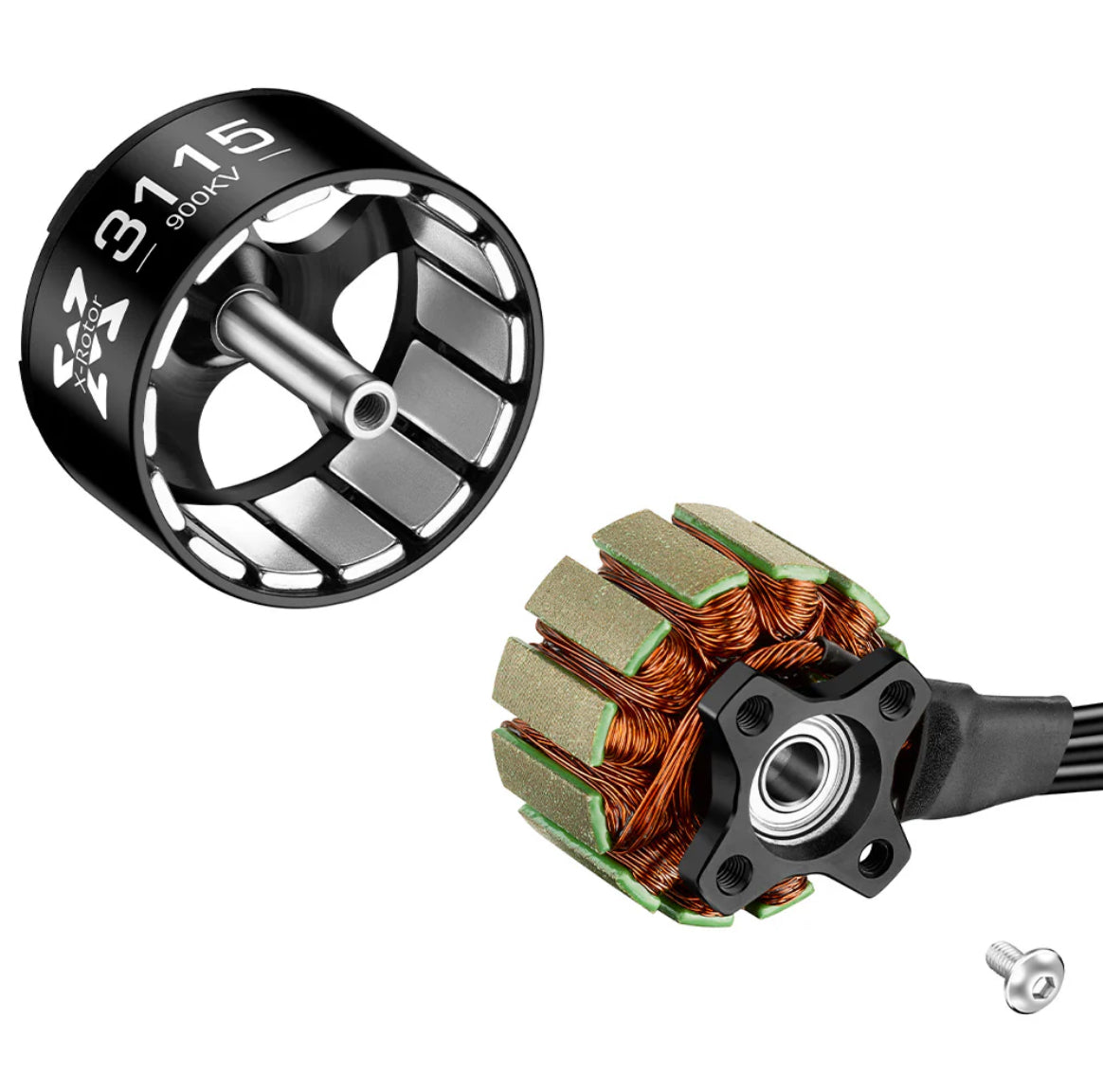

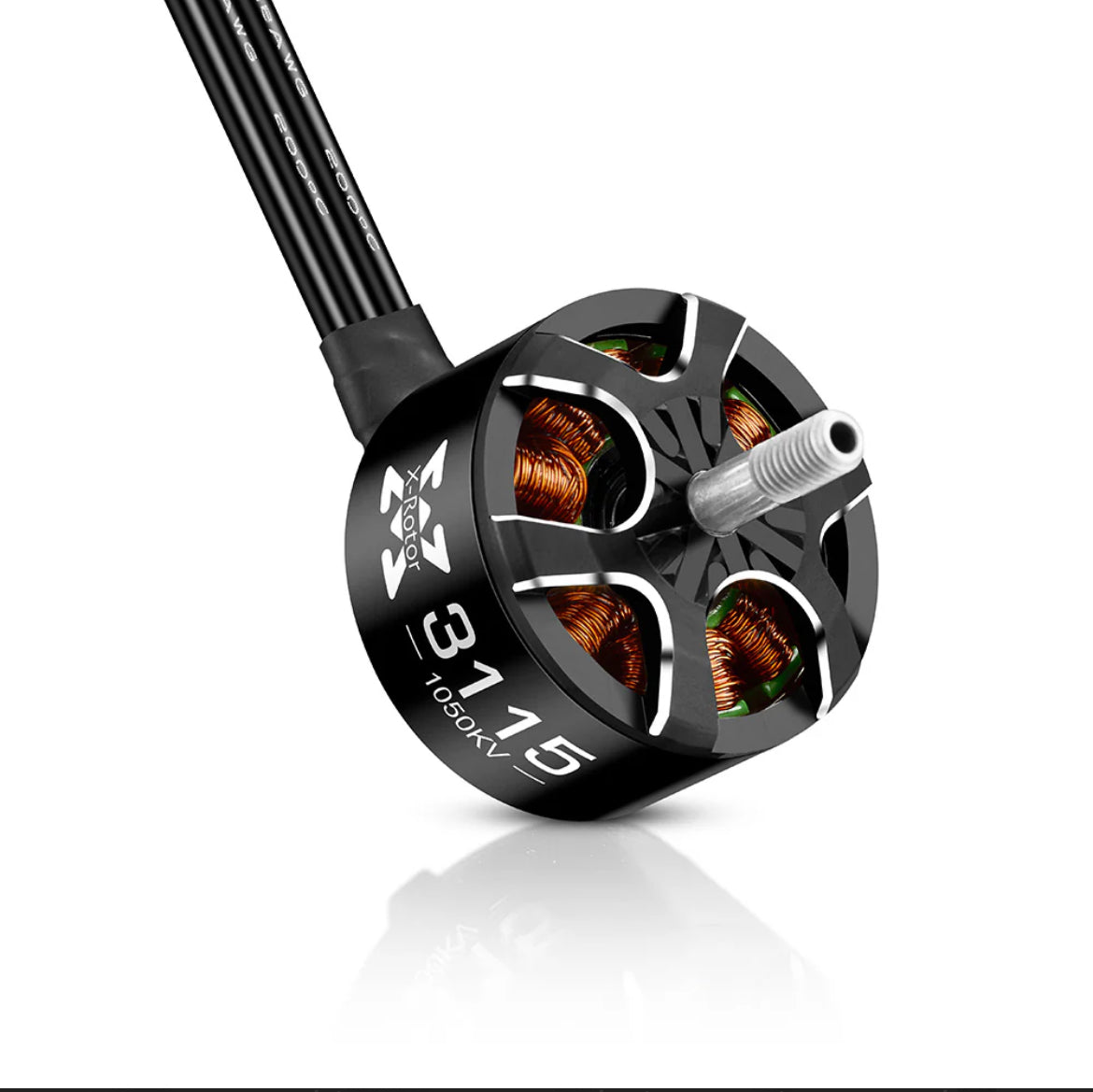

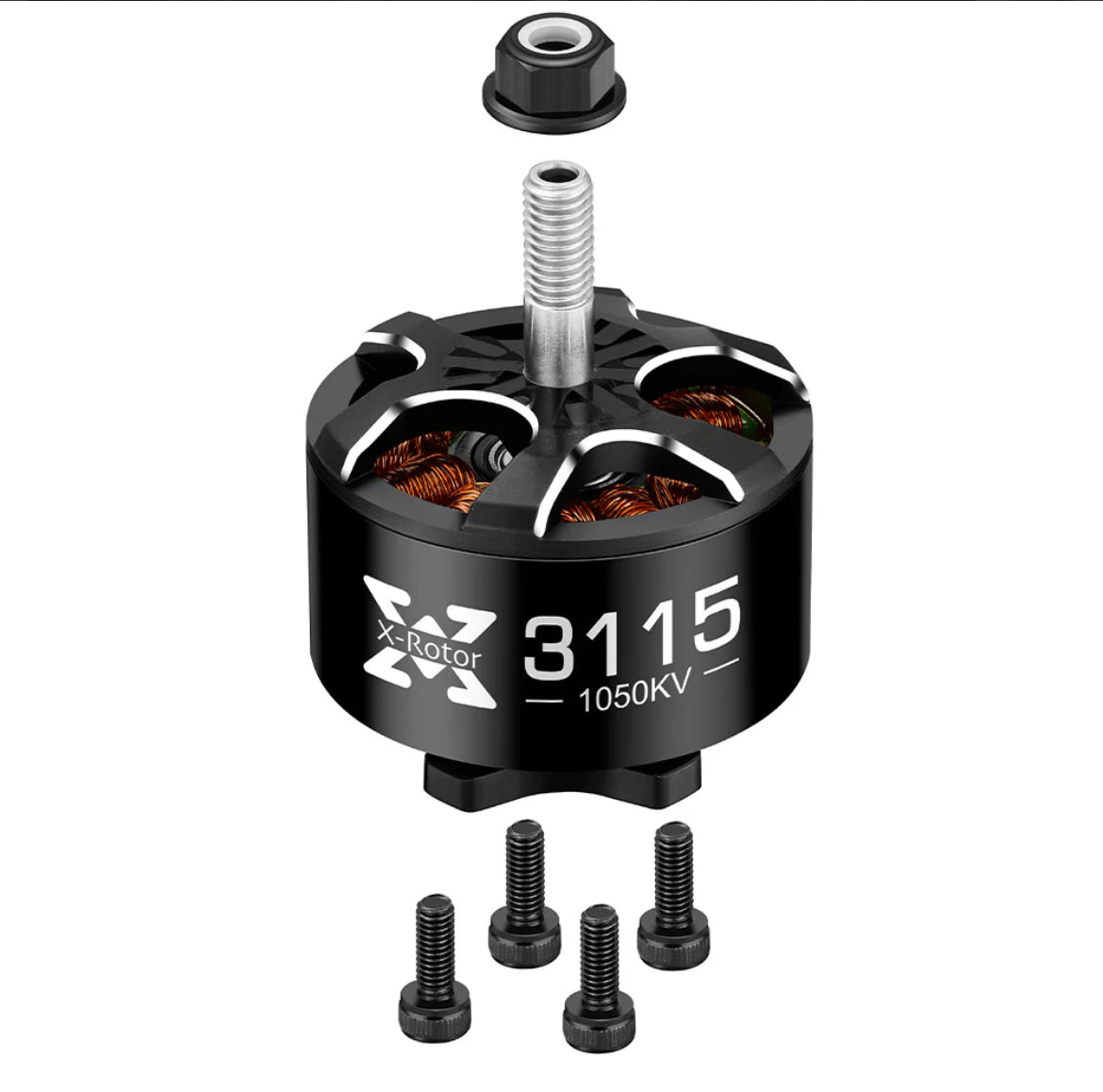

XRotor FPV 3115 Motors

Specifications
Product Number
30418005
30418006
30418007
30418008
KV Rating
900KV
1150KV
900KV
1050KV
LiPo Cells (LiPo)
4-6S
4-6S
4-6S
4-6S
No-Load Current
2.22/24V
2.8A/24V
2.0A/24V
2.8A/24V
Maximum Continuous Current
63A/10s
69A/6s
81A/10s
70A/30s
Maximum Continuous Rating
1500W/10s
1656W/6s
1940W/9s
1675W/30s
Maximum Thrust
3626g
4126g
5177g
4420g
Motor Weight
89g
889
125g
126g
Motor Size
$37.2 *27mm
$37.2 * 27mm
$37.2 *32mm
$37.2 •32mm
Slot/Pole
12N14P
12N14P
12N14P
12N14P
Wire Size
18AWG
1BAWG
16AWG
16AWG
Wire Length
250mm
250mm
300mm
300mm
Enamelled Wire Insulation Class
200°C High temperature Resistant,
H Class insulation
200°C High temperature Resistant,
H Class insulation
200°C High temperature Resistant
H Class insulation
200°C High temperature Resistant,
H Class insulation
Internal Resistance
59mn
45mn
41mn
31mn
Shaft Diameter
D5+M5
D5+M5
D5+M5
D5+M5
Shaft Length
16mm
16mm
16mm
16mm
Screw Diameter / Thread
Ф19mm-4*M3
Ф19mm-4*M3
Ф19mm-4*M3
