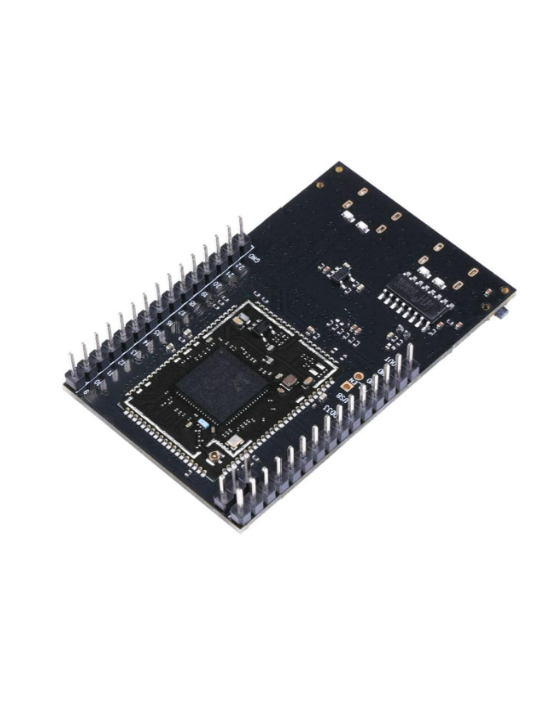

NGW-1pc AMB82-Mini IoT AI Camera Development Board
NGW-1pc AMB82-Mini IoT AI Camera Development Board

Tekkonect

NGW-1pc AMB82-Mini IoT AI Camera Development Board

$159.99

The NGW-1pc AMB82-Mini IoT AI Camera Development Board—a versatile and powerful solution for developers and hobbyists aiming to create advanced AI-driven camera applications. This development board is built around the Realtek RTL8735BDM System on a Chip (SoC), renowned for its ultra-low power consumption and robust performance, making it ideal for battery-operated devices and AI network camera applications.

Key Features:

  • High-Performance MCU: Equipped with an ARMv8M MCU running at up to 500MHz, the AMB82-Mini ensures efficient processing capabilities for complex tasks.

  • Integrated NPU: The onboard Neural Processing Unit (NPU) delivers 0.4 TOPS, facilitating real-time AI computations for applications such as object detection, audio recognition, and facial recognition.

  • Dual-Band Wi-Fi and Bluetooth Connectivity: Supports 802.11 a/b/g/n dual-band (2.4GHz/5GHz) Wi-Fi and Bluetooth BLE 5.1, ensuring seamless wireless communication for IoT applications.

  • Advanced Video Capabilities: Features an H264/H265/JPEG video encoder capable of handling 1080p at 30fps, complemented by a 1920x1080 full HD CMOS image sensor with a wide 130° field of view optical lens.

  • Comprehensive Interface Options: Offers multiple interfaces, including USB 2.0 host and device ports, SD host, UART, SPI, I2C, PWM, and up to 23 configurable GPIOs, providing flexibility for various peripheral integrations.

  • Developer-Friendly Environment: Compatible with multiple development platforms, including FreeRTOS, IAR, GCC, and Arduino IDE, simplifying the programming and AI model training process.

Applications:

The AMB82-Mini is well-suited for a wide range of applications, including:

  • AIoT Devices: Develop intelligent Internet of Things devices with integrated AI capabilities.

  • AI Cameras: Create smart cameras capable of real-time image processing and analysis.

  • Battery-Powered Cameras: Design energy-efficient cameras for surveillance and monitoring purposes.

  • Smart Home Systems: Integrate into home automation systems for enhanced security and functionality.

  • Industrial Applications: Deploy in industrial settings requiring intelligent monitoring and data acquisition.

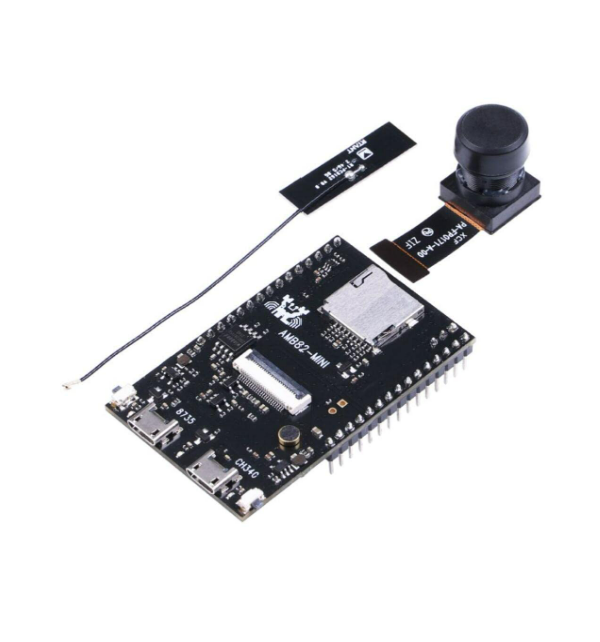

Package Includes:

  • 1x AMB82-Mini Development Board

  • 1x Dual-band Wi-Fi (2.4GHz/5GHz) Ipex antenna

  • 1x Camera module (F37)

Elevate your AI and IoT projects with the NGW-1pc AMB82-Mini IoT AI Camera Development Board, offering a comprehensive set of features designed to accelerate development and deployment of intelligent application
