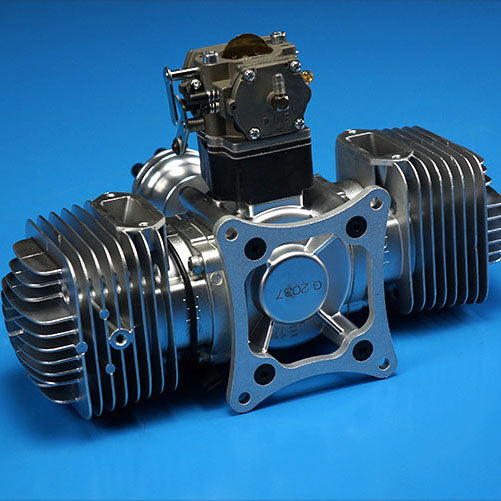

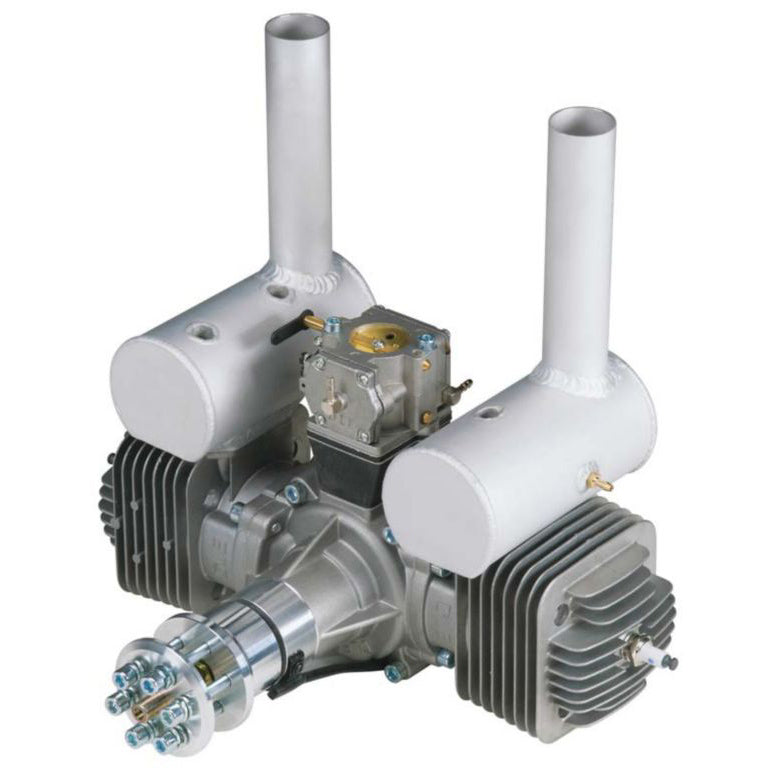

DLE-170 170cc Twin Gas Engine With Electronic Ignition And Mufflers
DLE-170 170cc Twin Gas Engine With Electronic Ignition And Mufflers
DLE-170 170cc Twin Gas Engine With Electronic Ignition And Mufflers
DLE-170 170cc Twin Gas Engine With Electronic Ignition And Mufflers

Tekkonect

DLE-170 170cc Twin Gas Engine With Electronic Ignition And Mufflers

$2,409.00
  • Three crank bearings, simple design for lighter weight
  • Double V-type reed valves, bottom induction
  • Automatic electronic ignition
  • Customized carburetor
  • Special aluminum alloy crankcase
  • Advanced CNC machining
  • High quality sealed bearings
  • Horizontally opposed twin cylinders for low vibration
  • High power-to-weight ratio
  • Includes mufflers
  • Includes mount

Specifications:

  • Stock Number: DLEG0170
  • Displacement: 170 cc (10.37 cu in)
  • Bore: 2.05 in (52 mm)
  • Stroke: 1.57 in (40 mm)
  • Weight: 9.06 lbs (4.11 kg)
  • RPM Range: 1,100-9,000
  • Output: 17.5 hp @ 9,000 rpm
  • Requires: Gasoline, oil, ignition battery & propeller

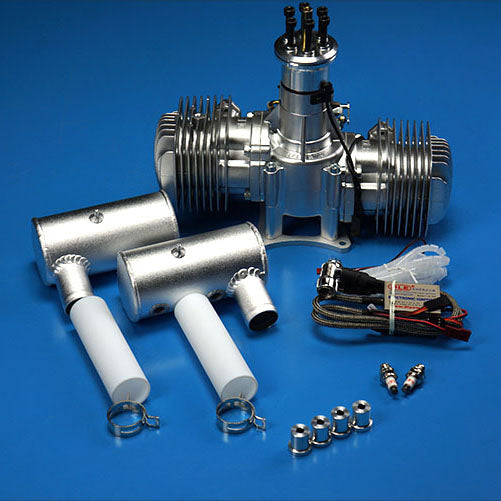

  • Includes: electronic ignition, mufflers, mount, spark plugs, gaskets, bolts, machined aluminum standoffs, throttle arm extension & mounting template
  • Suggested Propellers: 30 x 12 & 32 x 10

Technical Data:

  • Compression Ratio: 9.5:1
  • Gasoline/Oil Mix: 30:1
  • Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
  • Weights (individual): Engine: 7.83 lbs (3,550 g); Exhaust (2): 7.05 oz (200 g); Ignition: 5.64 oz (160g）
