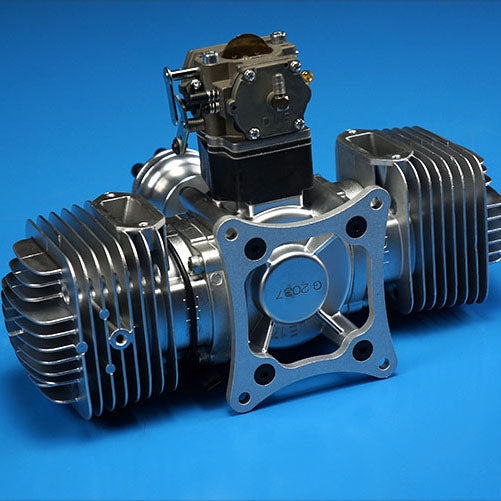

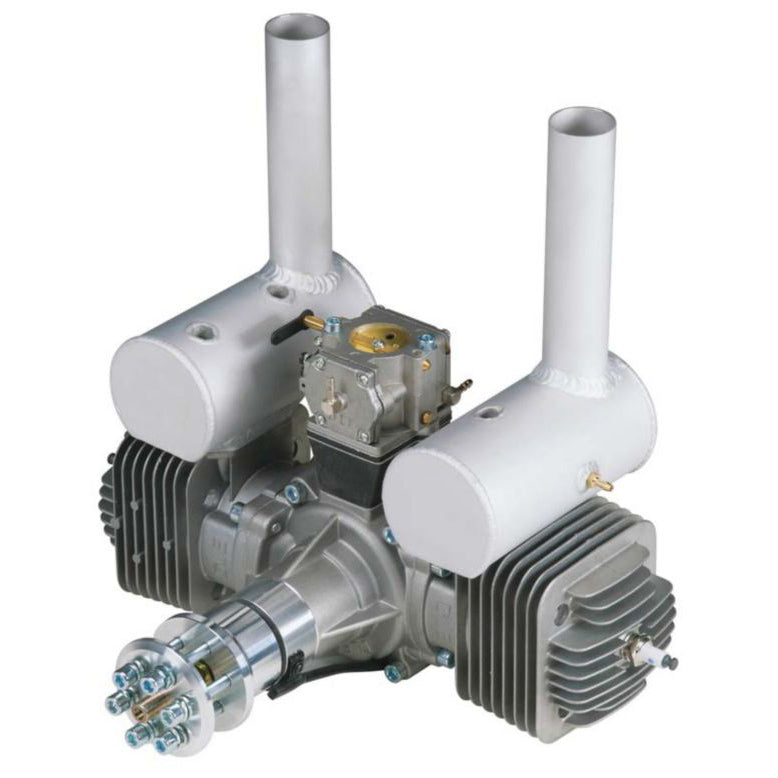

DLE-170 170cc Twin Gas Engine With Electronic Ignition And Mufflers

• Three crank bearings, simple design for lighter weight
• Double V-type reed valves, bottom induction
• Automatic electronic ignition
• Customized carburetor
• Special aluminum alloy crankcase
• Advanced CNC machining
• High quality sealed bearings
• Horizontally opposed twin cylinders for low vibration
• High power-to-weight ratio
• Includes mufflers
• Includes mount

Specifications:

• Stock Number: DLEG0170
• Displacement: 170 cc (10.37 cu in)
• Bore: 2.05 in (52 mm)
• Stroke: 1.57 in (40 mm)
• Weight: 9.06 lbs (4.11 kg)
• RPM Range: 1,100-9,000
• Output: 17.5 hp @ 9,000 rpm
• Requires: Gasoline, oil, ignition battery & propeller

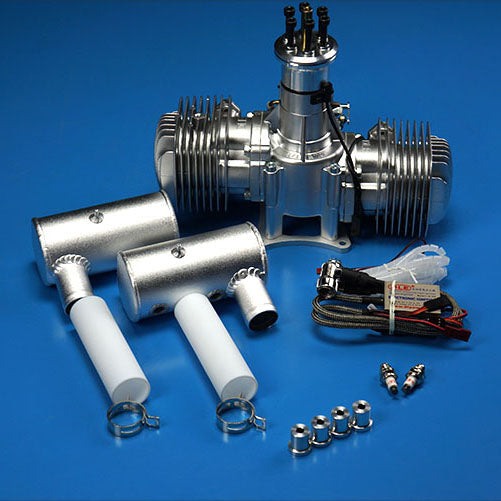

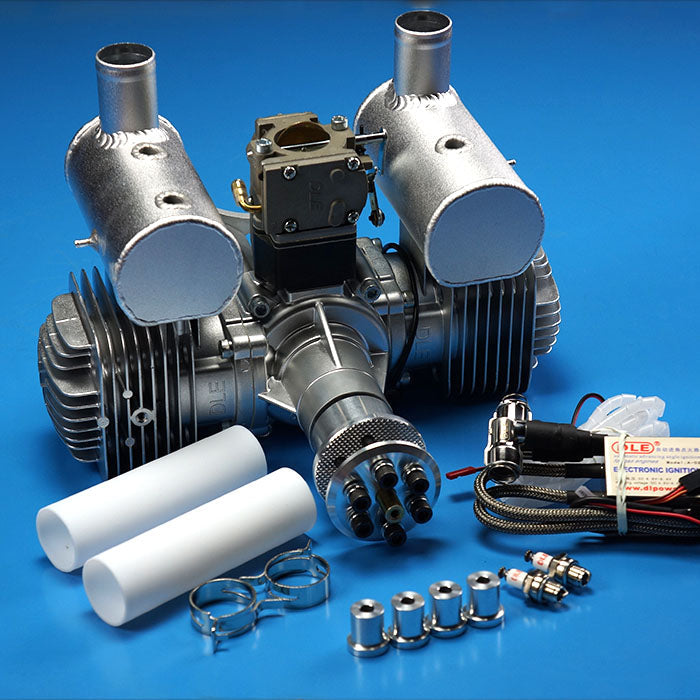

• Includes: electronic ignition, mufflers, mount, spark plugs, gaskets, bolts, machined aluminum standoffs, throttle arm extension & mounting template
• Suggested Propellers: 30 x 12 & 32 x 10

Technical Data:

• Compression Ratio: 9.5:1
• Gasoline/Oil Mix: 30:1
• Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
• Weights (individual): Engine: 7.83 lbs (3,550 g); Exhaust (2): 7.05 oz (200 g); Ignition: 5.64 oz (160g）
