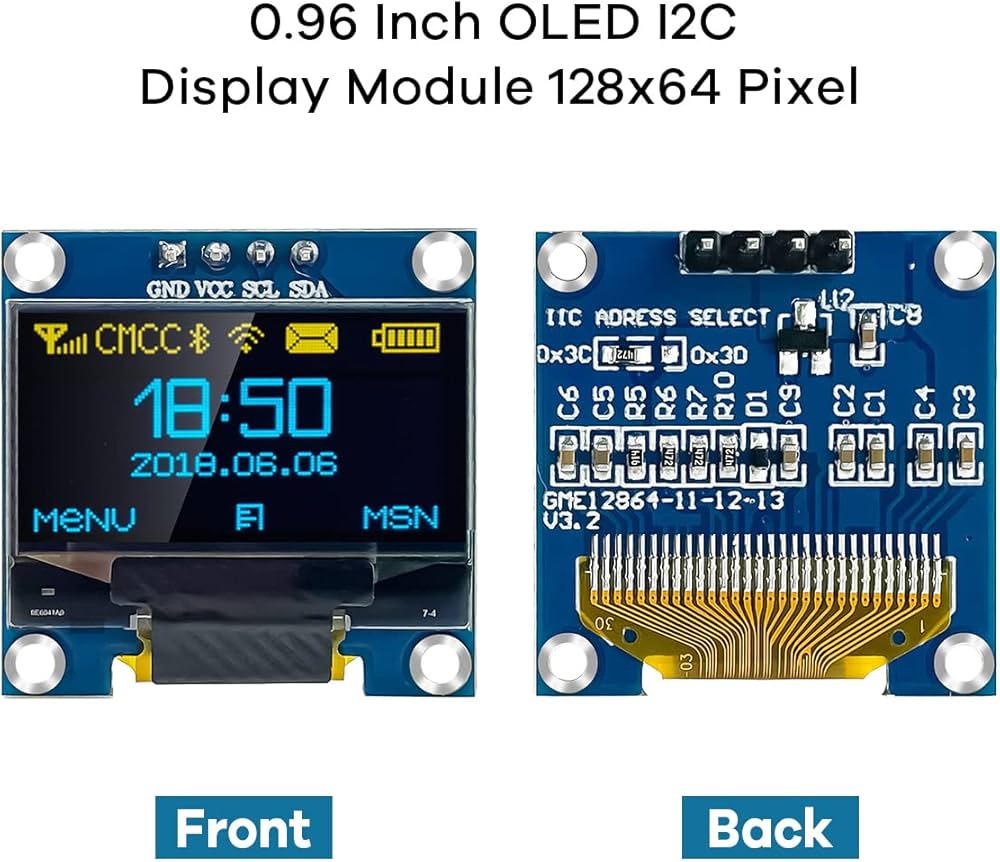

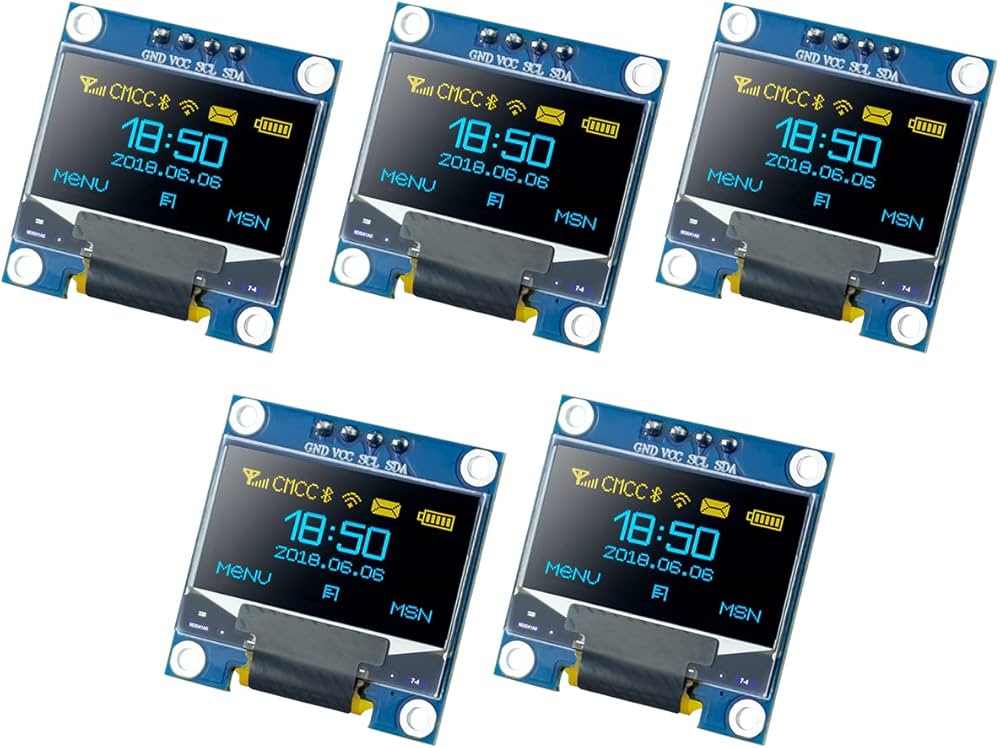

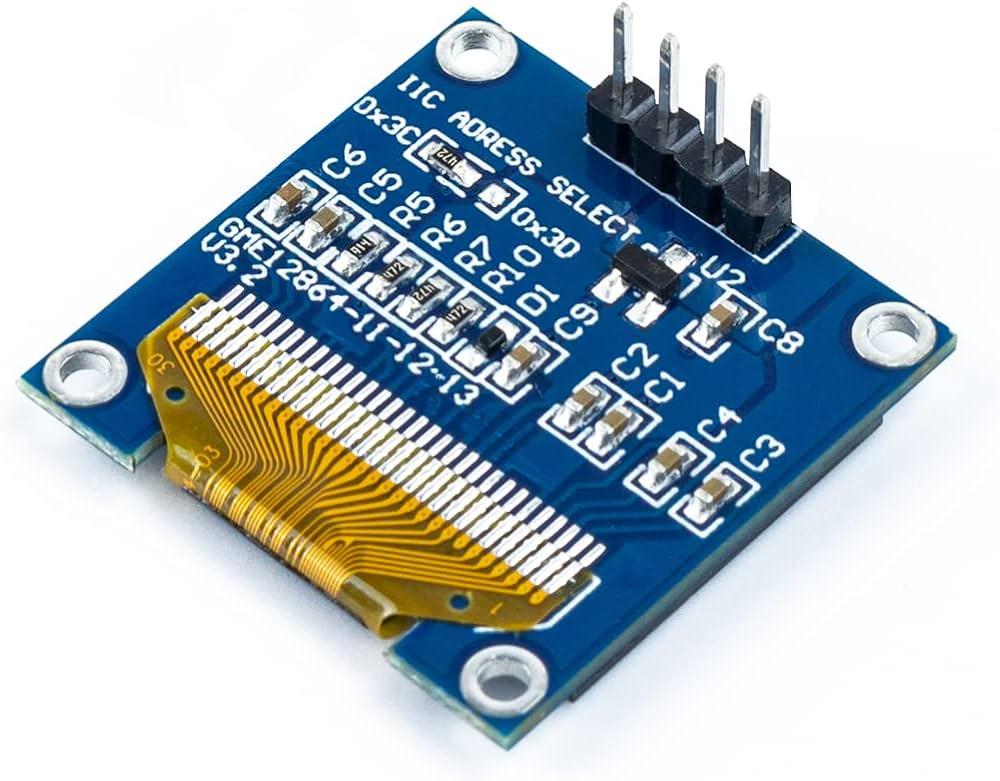

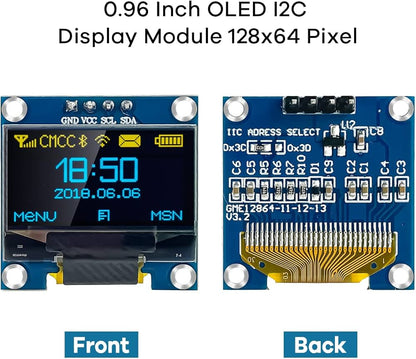

5 Pcs 0.96 Inch OLED I2C IIC Display Module 12864 128x64 Pixel SSD1306 Mini Self-Luminous OLED Screen Board Compatible with Arduino Raspberry Pi(Blue and Yellow)

5 Pcs 0.96 Inch OLED I2C IIC Display Module 12864 128x64 Pixel SSD1306 Mini Self-Luminous OLED Screen Board Compatible with Arduino Raspberry Pi(Blue and Yellow)

$25.00 USD
$25.00 USD
Sale Sold out
  • 0.96 inch,Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W
  • Embedded Driver IC: SSD1306. Communication: I2C/IIC Interface, only need two I / O ports

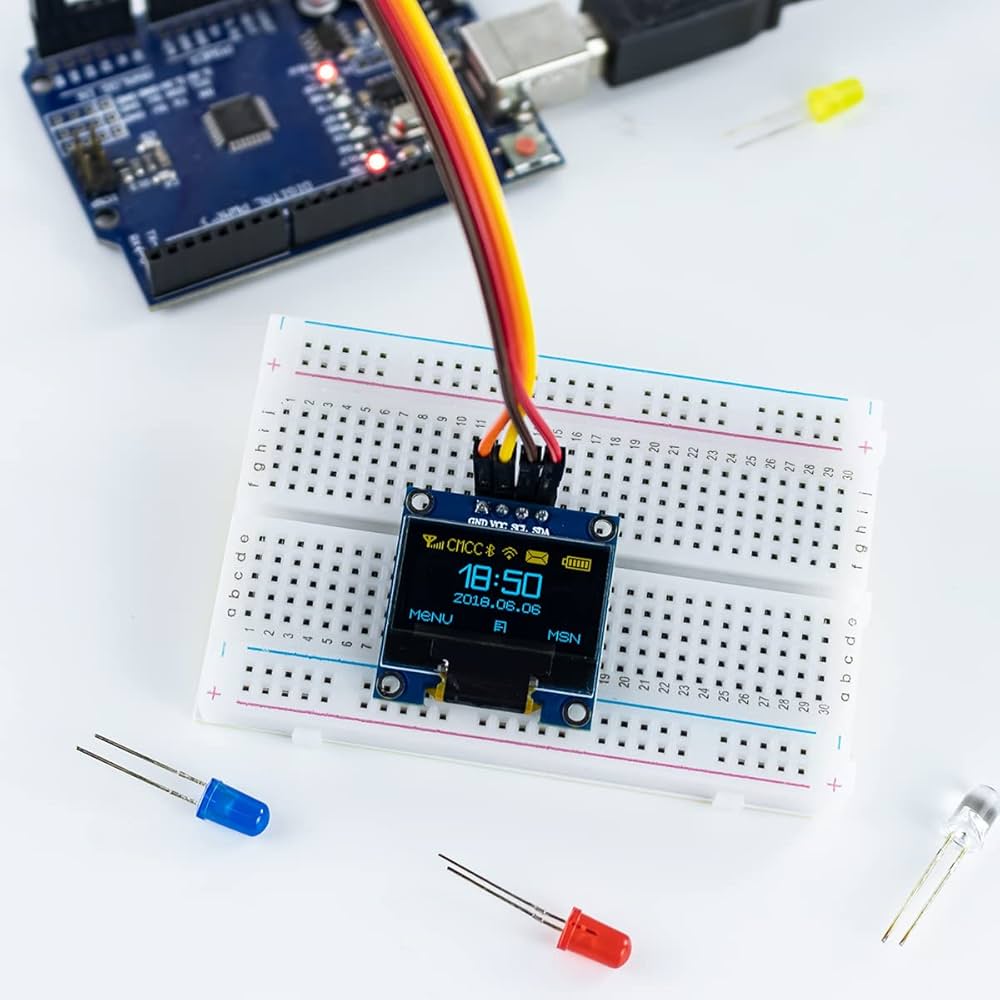

  • It compatibles with R3 board and Mega, Raspberry pi, 51 MCU, STIM 32, etc.
  • No backlight is required, and the display unit can be self-luminous. It has ultra-high contrast, bright and clear dots, and it is easy to read even small fonts
  • There are no fonts embedded in the OLED controller, users can create fonts through font generation software.

  • Package include:

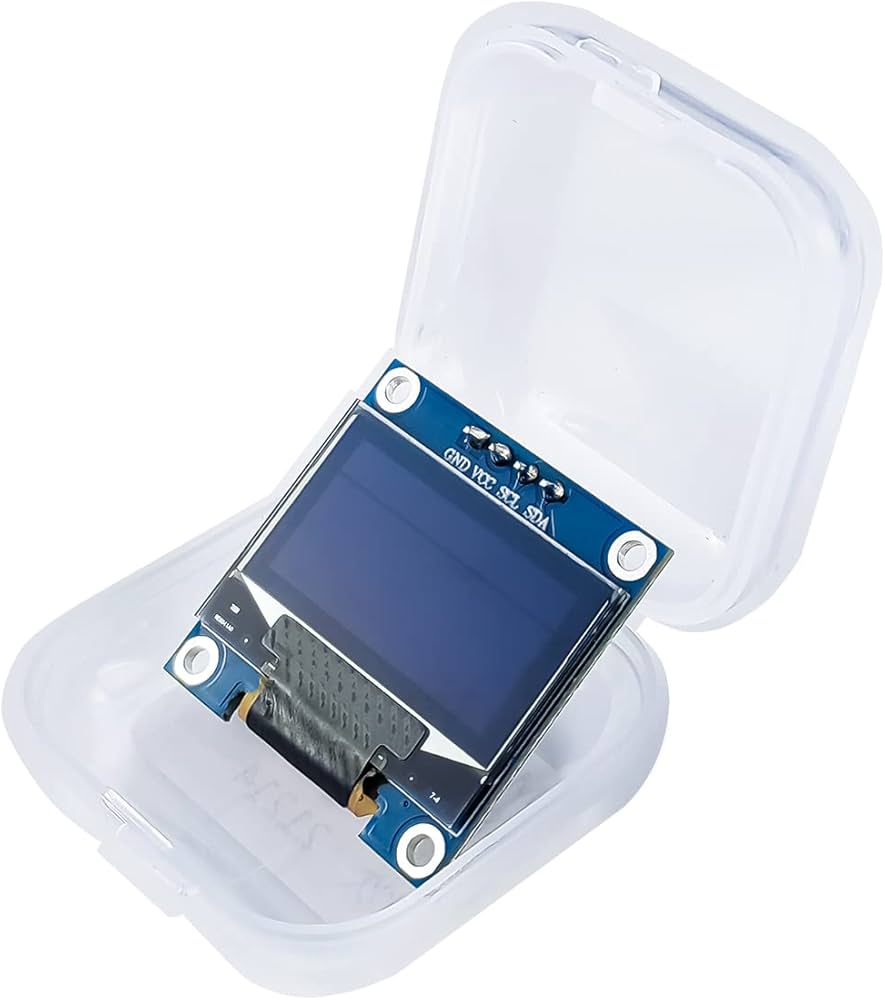

    5 x 0.96 oled module(with protective box)

    Product description



    • OLED self-luminous, no backlight
    • High resolution: 128x64 (same resolution as 12864, high PPI)
    • Large viewing angle: greater than 160° (a screen with the largest viewing angle in the display)
    • Ultra-low power consumption: normal display 0.06w (far lower than TFT display)
    • Wide voltage power supply (3V~5V), compatible with 3.3V and 5V level logic, no need for level conversion chips
    • The IIC interface only needs 2 IOs to light up easily
    • Military-grade process standards, long-term stable work
    • Provide rich multi-platform routines and provide underlying driver technical support
    • Yellow blue, white, blue three color display scheme optional



    Applications:

    MP3, MP4, watch. Head-mounted displays. Meters and other intelligent instruments. Design any pretty patterns for your beloved electronic devices!
