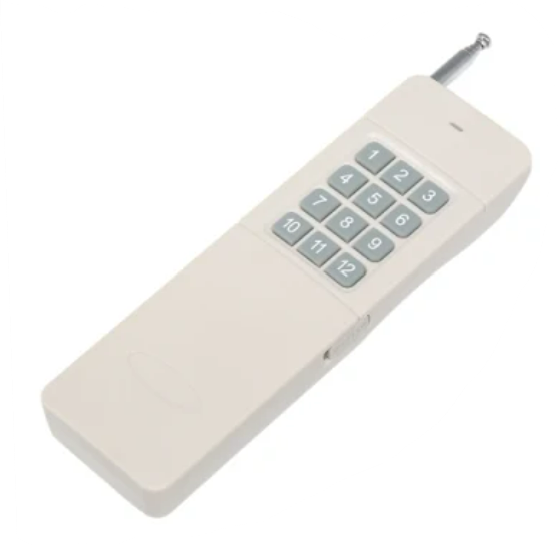

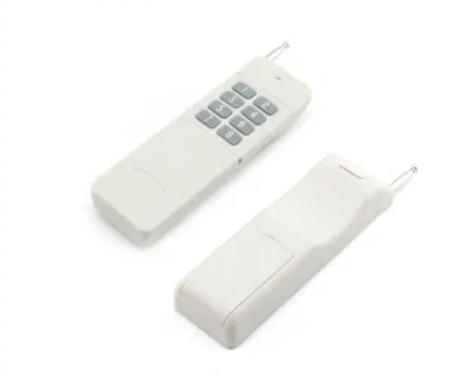

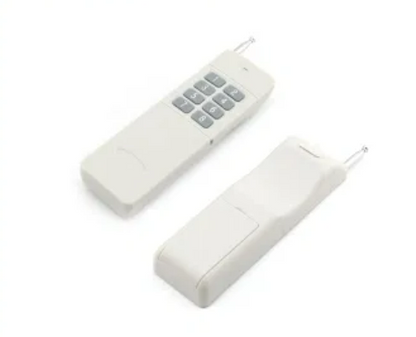

5km Long Range Distance 433MHz Universal Wireless RF Lora Remote Control

Basic Info.

Model NO.

KLR5000-1/2/4/6/8/12

Voltage

9V

Material

Plastic

Battery Type

6f22

Model Number

Kl-5000-1/2/4/6/8/12

Battery

9V, 6f22

Frequency

434MHz / 868MHz / 915MHz

Range

5000m-6000m

Use

Farmland, Pasture, Offshore Unmanned Operation

Modulation Way

Fsk+Lora

Working Current

65mA

1. Overview
KL5000-N is a super far distance bidirectional communication remote control series that developed by our company lately. There are 6 models according to different buttons sum 1,2,4,6,8,12. It adopts spread spectrum communication technology to increase the anti-jamming performance. American imports chipset and strict inspection ensure the quality and reliability. The measured operation range can be more than 6000m when the remote control is working with the specialized receiver module.
If the bidirectional mode is selected, the remote will instantly receive a feedback from the receiver.

2. Operation
1) Matching code
Press learning button on the receiver module and hold on for 3 seconds, LED indicator lights. Then press any button on the remote control. When LED flashes twice, matching successfully.
2) Feedback Set
Short-circuit S3 on the PCB of remote control, it receives feedback.
When it receives the feedback, it will make a sound as "Di---"
Otherwise, it does not.
