5km Long Range RF Receiver Module Kl-Bt01
5km Long Range RF Receiver Module Kl-Bt01
Regular price
$30.00 USD
Regular price
Sale price
$30.00 USD
Unit price
/
per
Couldn't load pickup availability

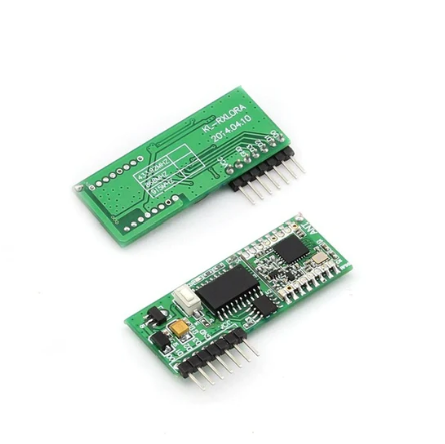

KL-BT01 is our currently developed new bidirectional receiver module. Its core is the use of spread spectrum communication techniques, greatly enhancing the anti-jamming performance.
1. Characteristic:
Ø High sensitivity, -148dBm.

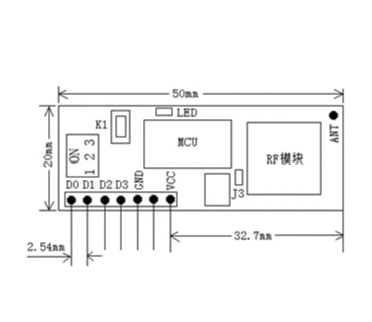

Ø Small size (50*20*7mm).
Ø Low power consumption.
Ø Low self emission, can easily pass all kinds of certification.
2. Specification:
Ø Frequency: 434/868/915MHz
Ø Working Voltage: DC3-12V, optional
Ø Working Current: 16mA
Ø Modulation: ASK/OOK
Ø Emission Current: 65mA
Ø Working Temperature: -10~70°C
3. Applications:
1). Garage door and gate openers
2). Electric windows, barrier, etc.
3). Remote controls and smart home alarm
4). Low baud rate for data transmission
