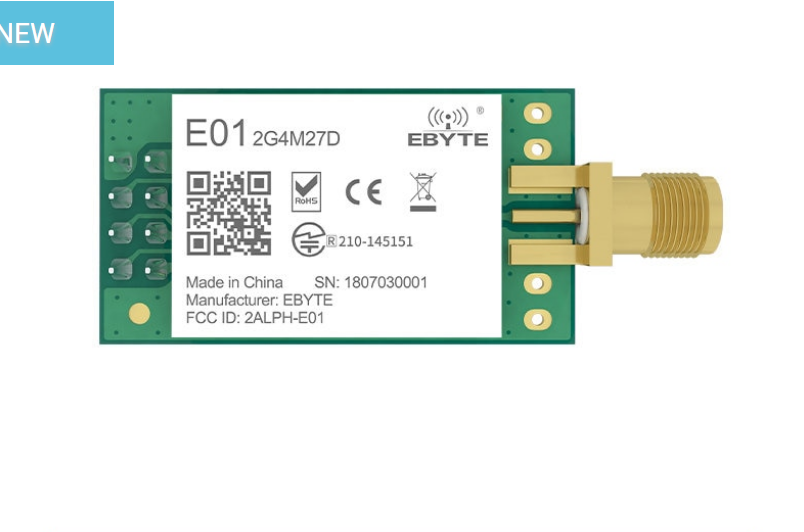

E01-2G4M27D SPI Transceiver NRF24L01 PA LNA Wireless Transmitter Receiver VR UAV

E01 series E01-2G4M27D 2.4Ghz wireless transceiver module based on nRF24L01P with SPI interface features small size and various application usage.E01 series modules are embedded with imported electronic parts, such as industrial crystals with high precision and TCXO. Using only the highest quality components, the E01 series 2.4Ghz wireless transceiver module ensures precision and reliability in various applications. With a small size and SPI interface, it’s the perfect solution for your wireless communication needs.

Condition: New

Type: Drive IC

Model Number: E01-2G4M27D

Supply Voltage: 2.5 – 5.5 V

Dissipation Power: 500mW

Application: Computer

Package: DIP

Type: Wireless Transceiver Module

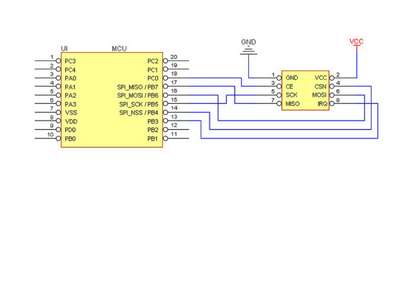

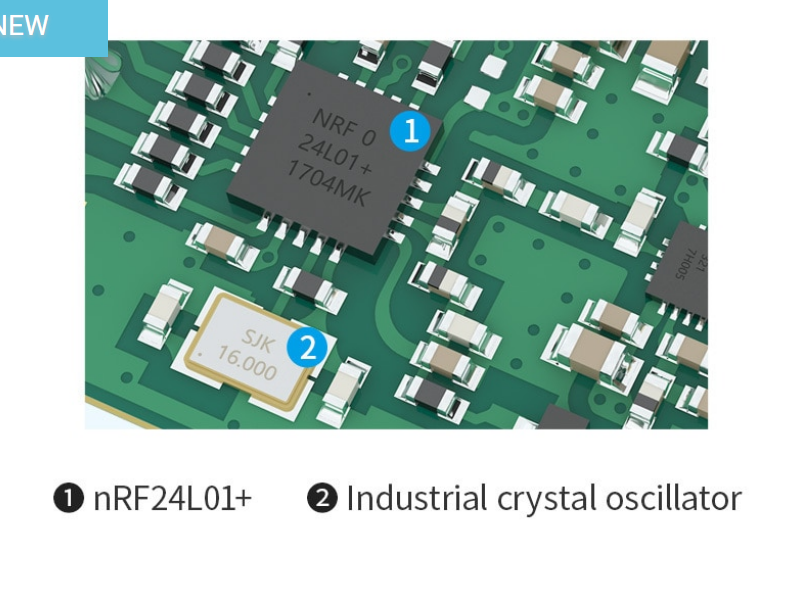

IC: nRF24L01P (nRF24L01+PA+LNA)

Frequency: 2.4~2.525GHz

Power: 27dBm

Distance: 5km

Interface: SPI

Weight: 5.2±0.1g

RF Parameter Value Remark
Working frequency 2400~2525 MHz Default: 2.4GHz (16MHz oscillator)
Transmitting power 27 dBm Max. Power (500mW)
Receiving sensitivity -99 dBm Air data rate: 250kbps
Air data rate 250k~2Mbps Default: 250kbps
Test distance 5000m In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,
air data rate: 250kbps

Hardware Parameter Value Remark

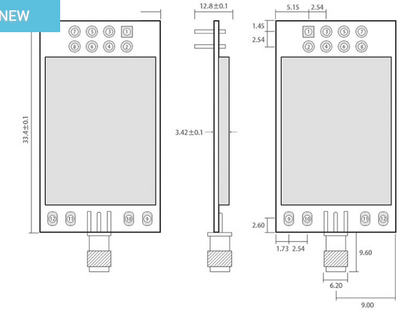

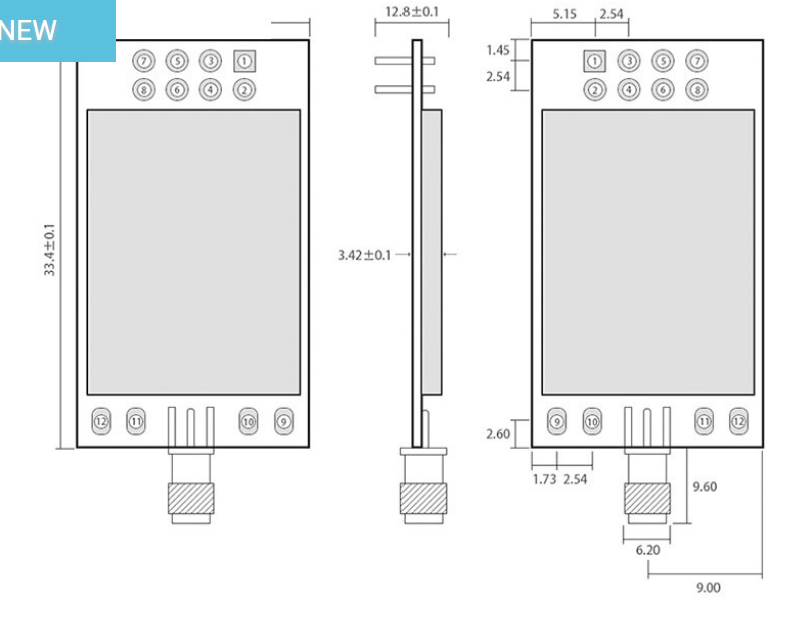

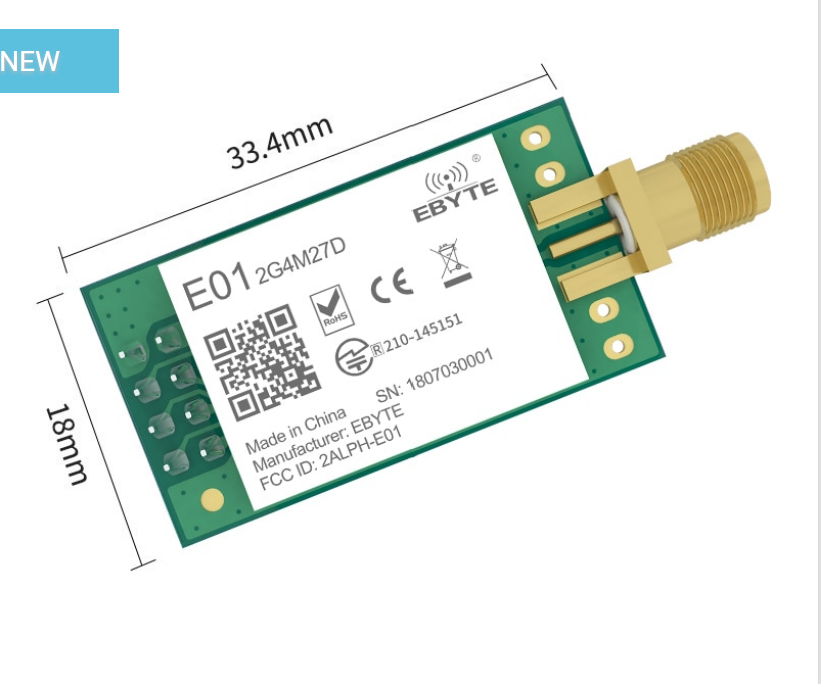

Size 18 * 33.4 mm Without SMA
Antenna type SMA-K

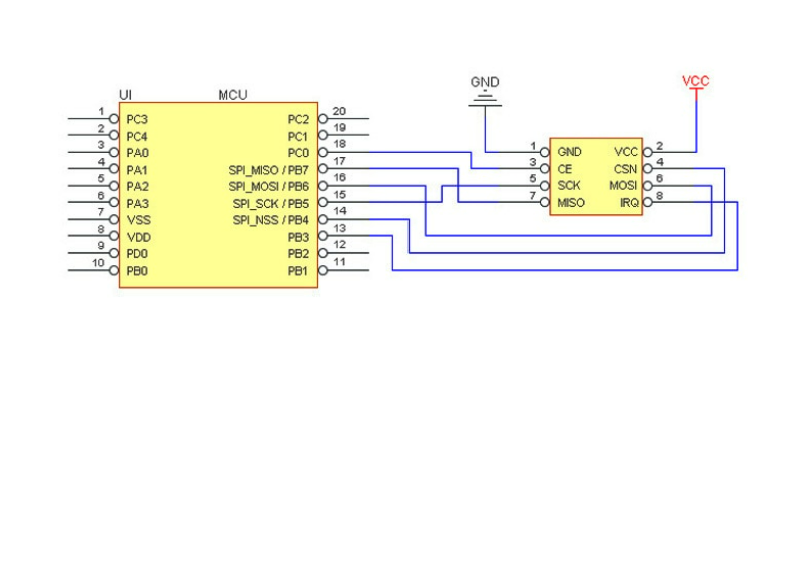

Communication interface SPI
Package DIP
Electronic parameter Min. Typ. Max. Unit Condition
Power supply 2.5 3.3 5.5 V
Communication level 2.0 3.3 3.6 V
Transmitting current 480 490 500 mA 3.3V
Transmitting current 380 390 400 mA 5.0V
Receiving current 22 23 24 mA 3.3V
Receiving current 21 22 23 mA 5.0V
Sleep current 450 455 460 μA
Operating temperature -40 20 +85 ℃
Operating humidity 10 60 90 %
Storage temperature -40 20 +125 ℃
