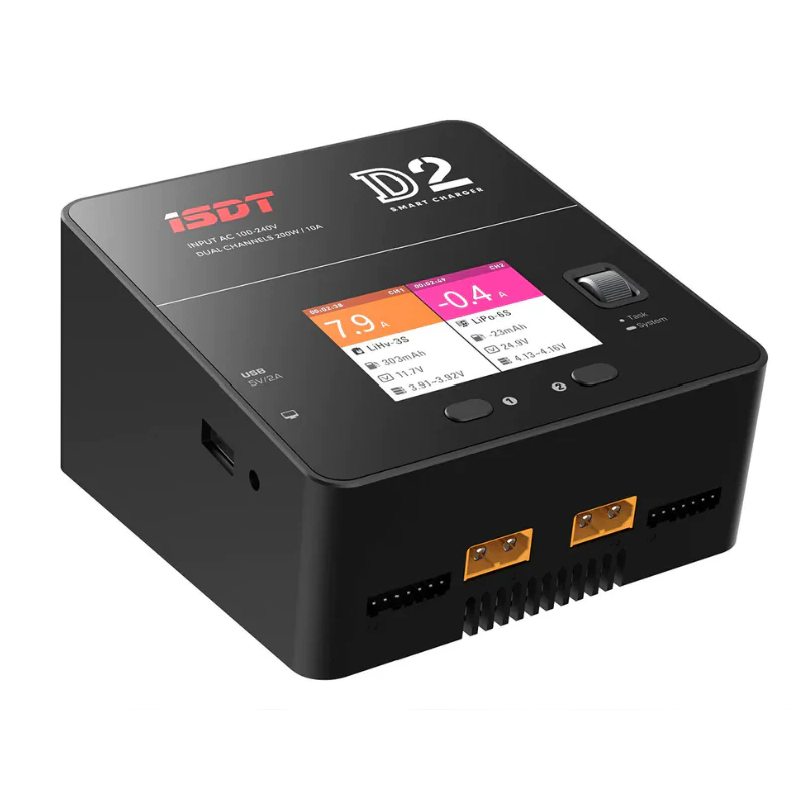

ISDT - D2 Mark 2 LiPo Battery Balance Charger, Dual 200W 12A AC Channel Output Charger
ISDT - D2 Mark 2 LiPo Battery Balance Charger, Dual 200W 12A AC Channel Output Charger
ISDT - D2 Mark 2 LiPo Battery Balance Charger, Dual 200W 12A AC Channel Output Charger

tekkonect

ISDT - D2 Mark 2 LiPo Battery Balance Charger, Dual 200W 12A AC Channel Output Charger

$249.85
In stock, ready to ship

The perfect charger for your batteries the ISDT D2 Mark 2 200W charger is compact in size and can travel with you anywhere you may go! Dual XT60 plugs for such items as the STRIX 4S Parallel Charging Board 2.0 – JB Signature Line, as well the charger supports up to 6s.

Key Features

  • D2 Smart balance charger
  • XT60 Charge Connector
  • Wide range AC Input, 200w of dual output
  • Dual channel output, without interference from each other
  • Support up to 6S balance charging and discharging with 2 output ports
  • 5V/2A USB output power from side of the unit, easily charge your mobile phone or other electronic products
  • Wide range AC Input, Industrial level power management
  • Adaptive for all different voltages across the world
  • PFC circuit makes it works more stable and less interference to power grid
  • (SCP) Short current protection
  • (OLP) Over load protection
  • (OVP) Over voltage protection
  • (OTP) Over Temperature protection
  • Outstanding performance on the power space ratio

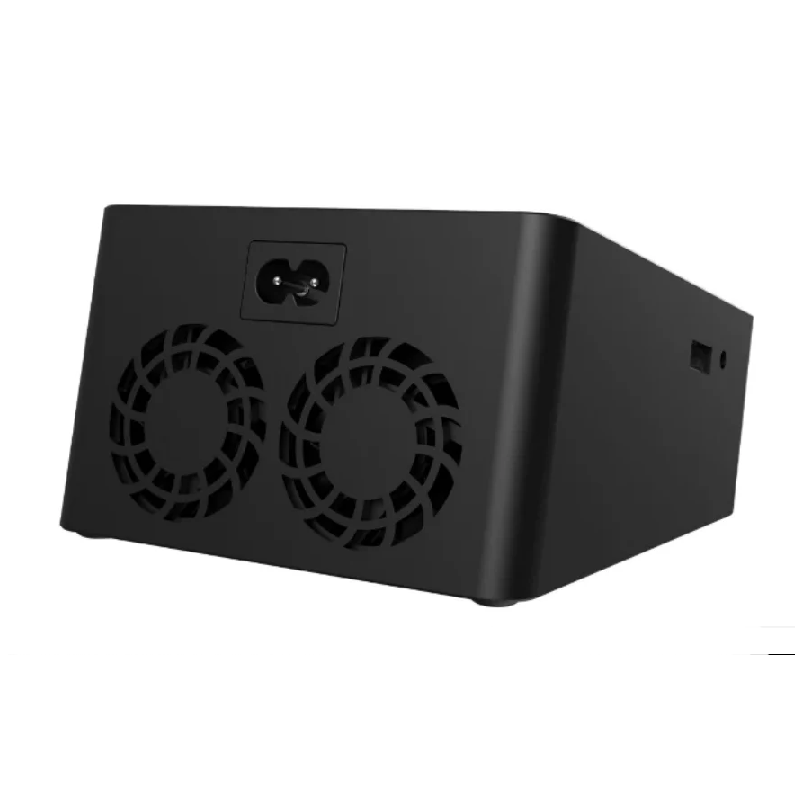

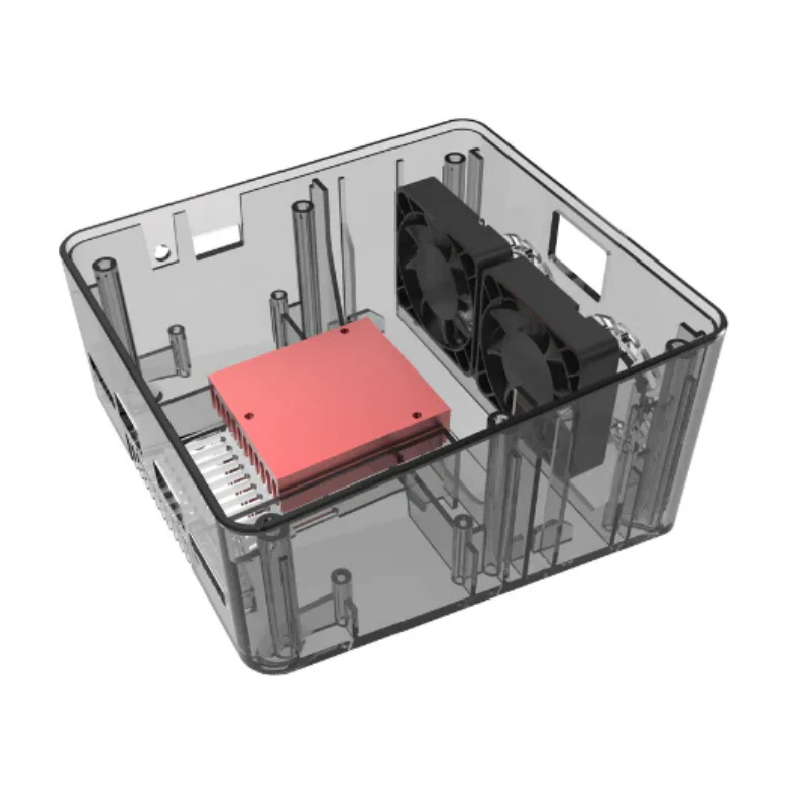

  • Carefully optimized internal structure, dual fan cooling system
  • High-speed efficient synchronous digital power supply technology, dual-fan High speed ball-bearing fan promotes active cooling efficiency
  • Bright, colorful, easy access set-up and status display
  • Firmware updates can be performed using a personal computer
  • AC Input
  • USB Port
  • Update Port
  • Balance port for channel 1
  • Battery port for channel 1
  • Battery port for channel 2
  • Balance port for channel 2
  • Channel 1 select button
  • Channel 2 select button
  • 2.4″IPS display
  • Speed shuttle key

Specifications

  • Input Voltage: AC 100-240V
  • Charge Current: 0.1-12.0A x 2
  • Discharge Current: 0.1-3.0A x 2
  • Max Charge Capacity: 200W
  • Max Discharge Capacity: 5W x 2
  • Balancing Current: 1A/cell x 2
  • Balance Cells: 6S x 2
  • USB Port: 5V/2A
  • Supported Battery Type: LiFe/Lilon/LiPo/LiHv (1-6S)
  • Supported Battery Type: NiMH/Cd (1-16S)
  • Supported Battery Type: Pb (1-12S)
  • Display: 2.4″ 320×240 IPS LCD
  • Operating Temperature: 0-40°C
  • Storage Temperature: -20-60°C
  • Dimensions: 120x108x70 mm
  • Weight: 558g

Package Included:

1x ISDT D2 Mark 2 Charger

1x AC Input Cable
