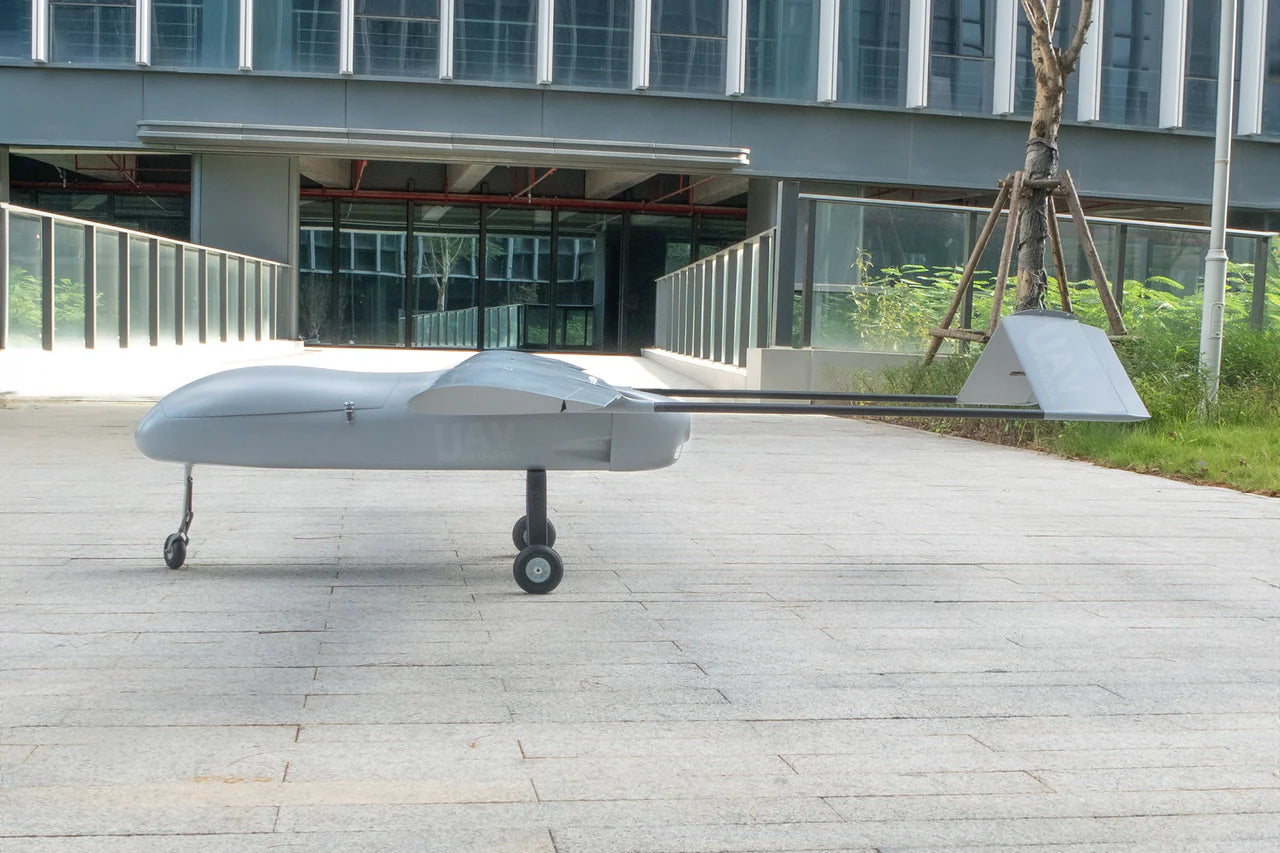

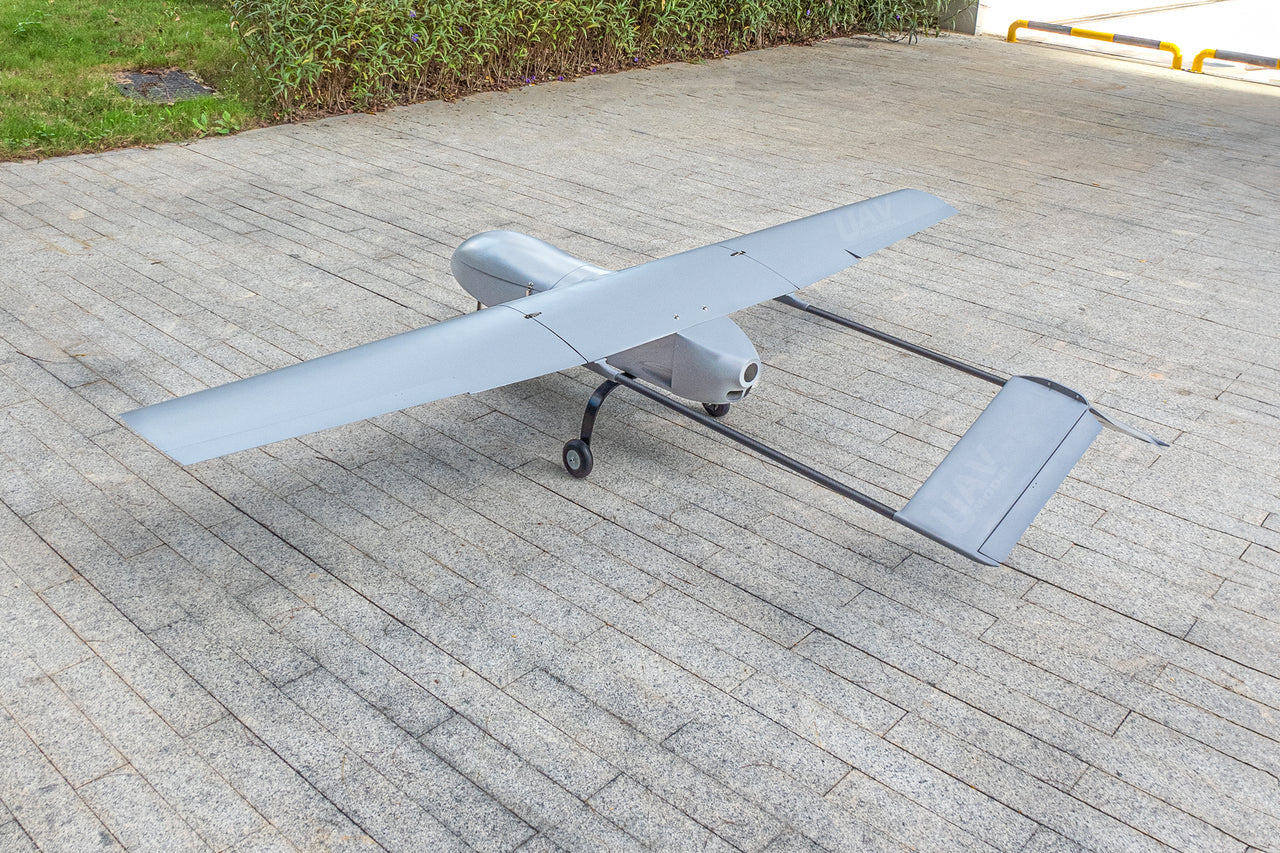

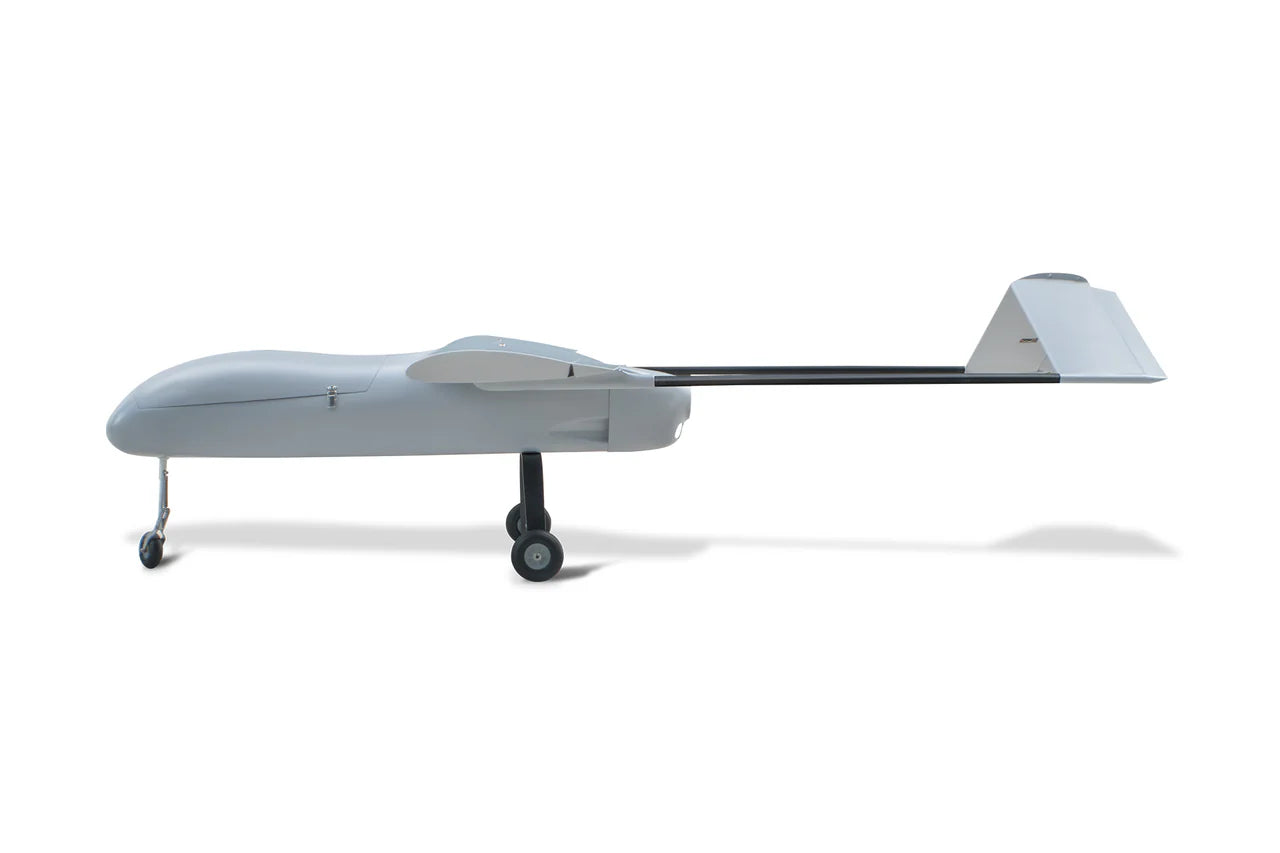

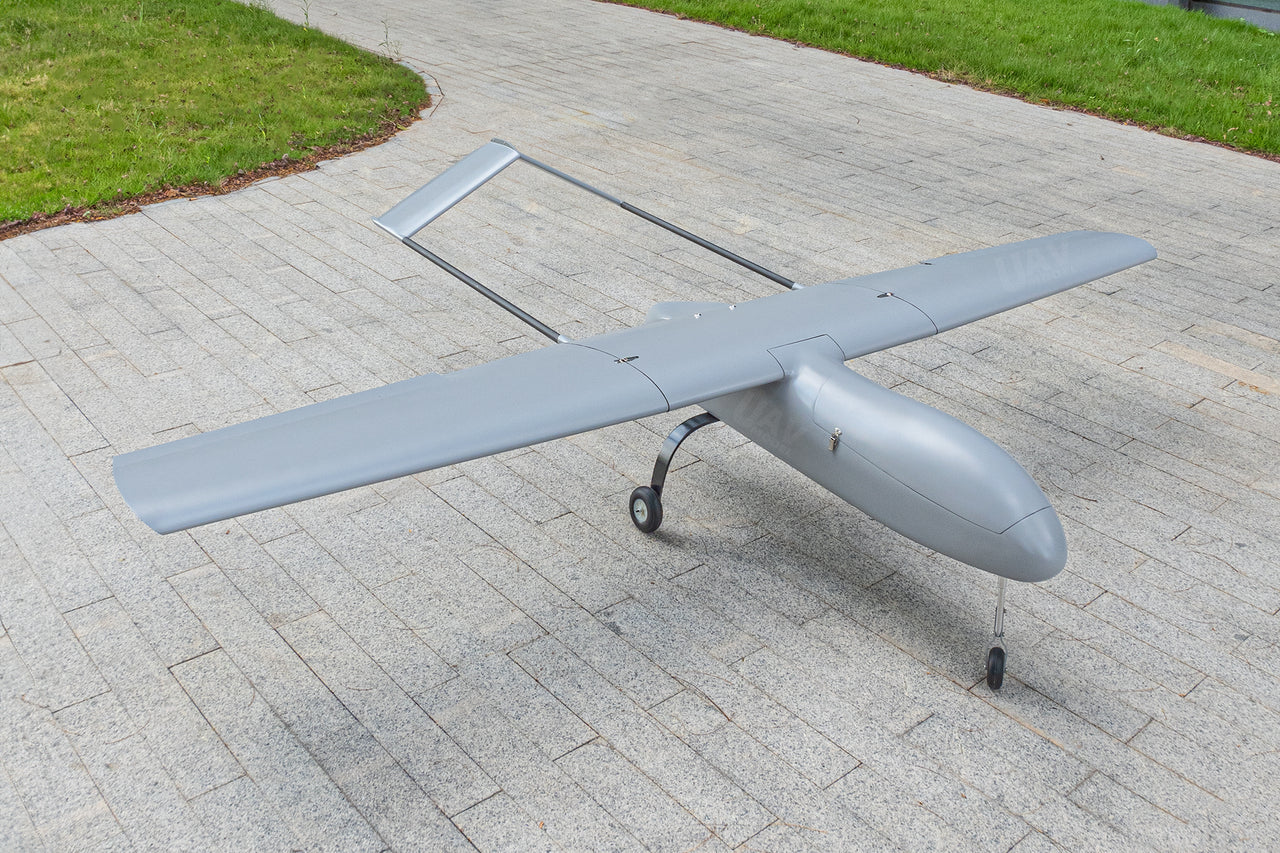

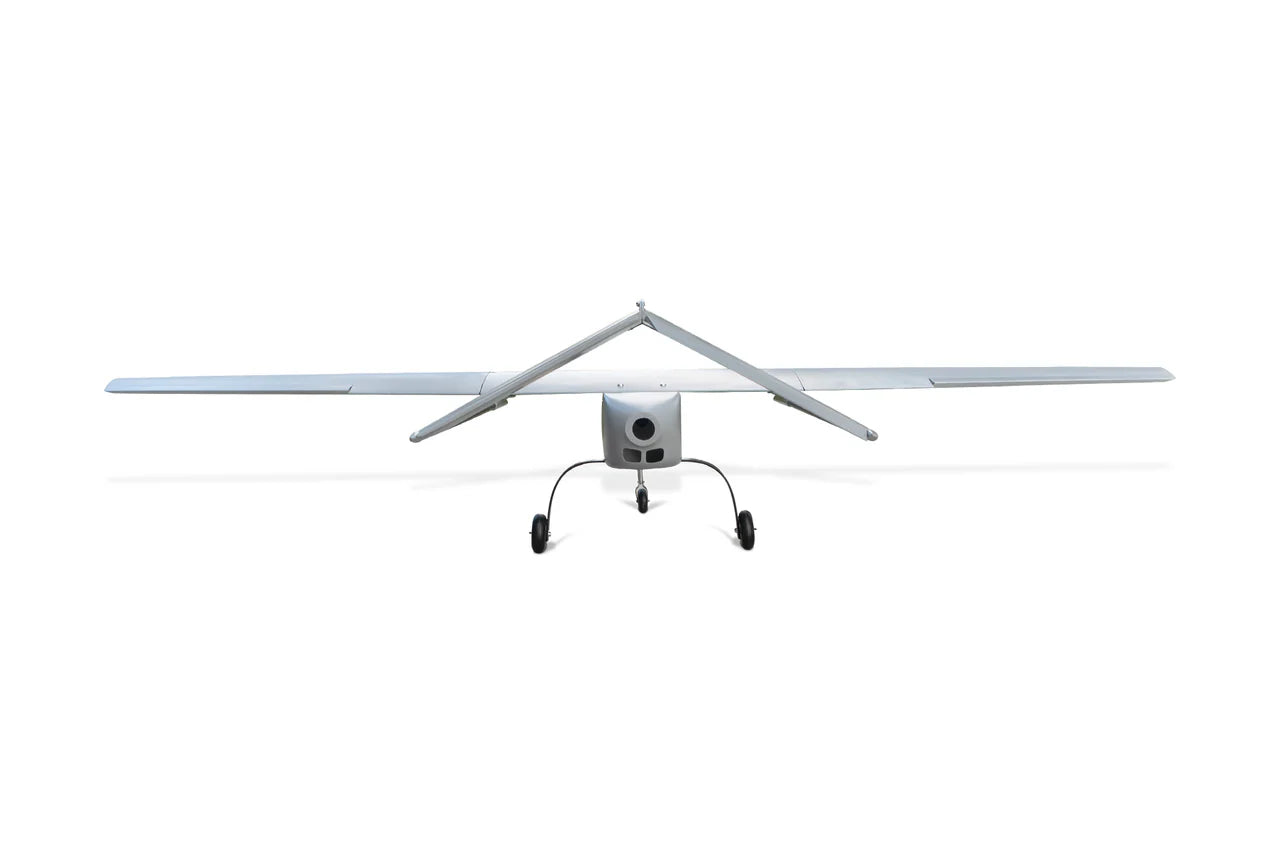

Sky King Carbon Fiber Fixed Wing Drone

The Sky King is a high-performance, long-endurance fixed-wing drone designed for professional aerial operations. Built with a durable glass fiber frame and reinforced with carbon fiber components, the Sky King combines lightweight construction with outstanding strength and stability, making it ideal for demanding missions in mapping, surveillance, research, and industrial inspection.

Key Features

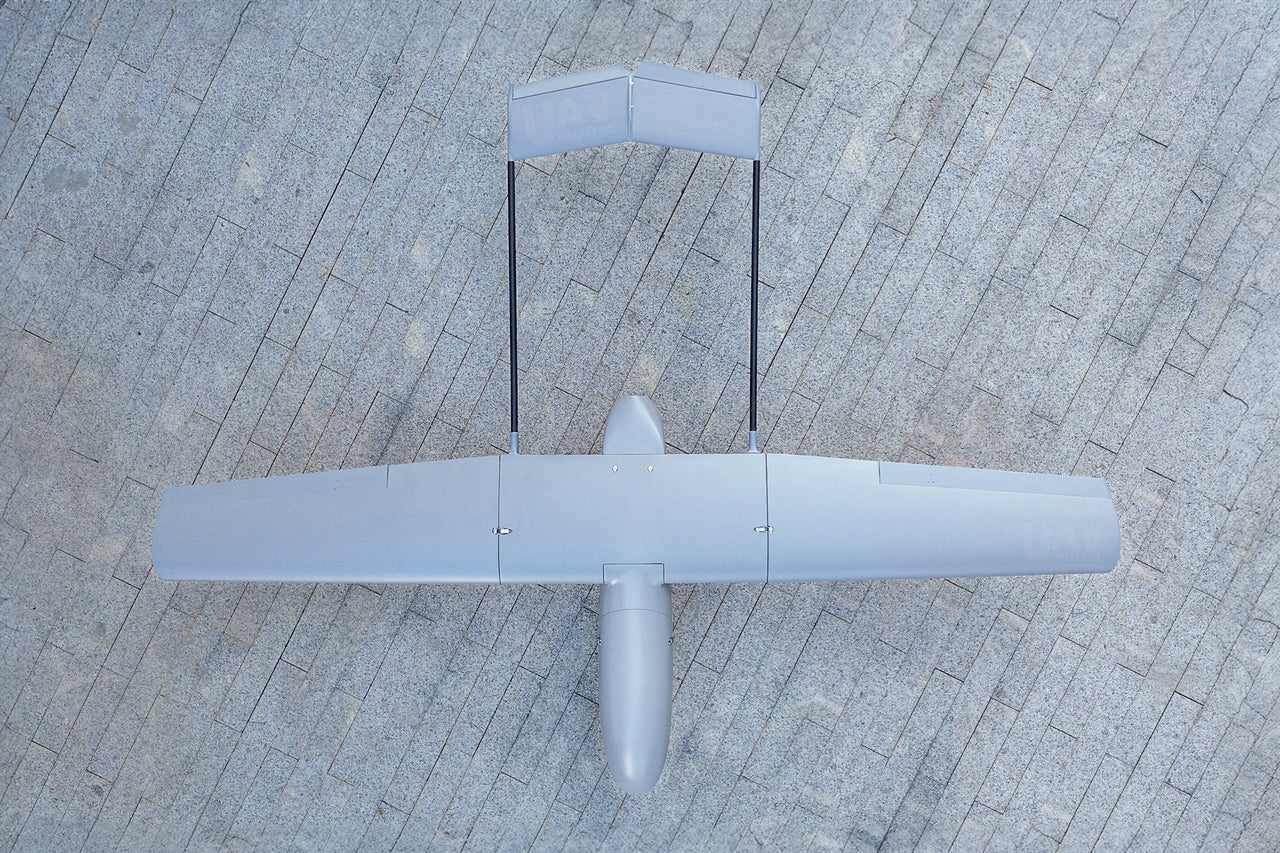

• Impressive Wingspan – With a 3600 mm wingspan and 2450 mm fuselage length, the Sky King provides exceptional lift and aerodynamic efficiency.
• Large Payload Bay – A spacious bay (560 × 260 × 270 mm) accommodates up to 8 kg of payload, supporting advanced sensors, cameras, or specialized equipment.
• Extended Flight Endurance – Capable of flying up to 6 hours on a single mission, enabling coverage of large areas without frequent landings.
• Reliable Performance – Cruise speed of 30 m/s, maximum speed of 33 m/s, and stall speed of just 24 m/s ensure stable and efficient flight.
• Rugged & Lightweight – At just 15 kg empty weight with a 32 kg maximum takeoff weight, it offers a strong balance of payload capacity and maneuverability.

Configurations

• KIT Version – Includes core airframe components such as wings, tail, landing gear, mainframe, fuel tank, and engine cowling.
• PNP (Plug-and-Play) Version – Comes with a complete power system, including tailthrust motor, ESC, propeller, servos, and pitotometer for rapid deployment.

Bonus Accessories – Included with Every Sky King

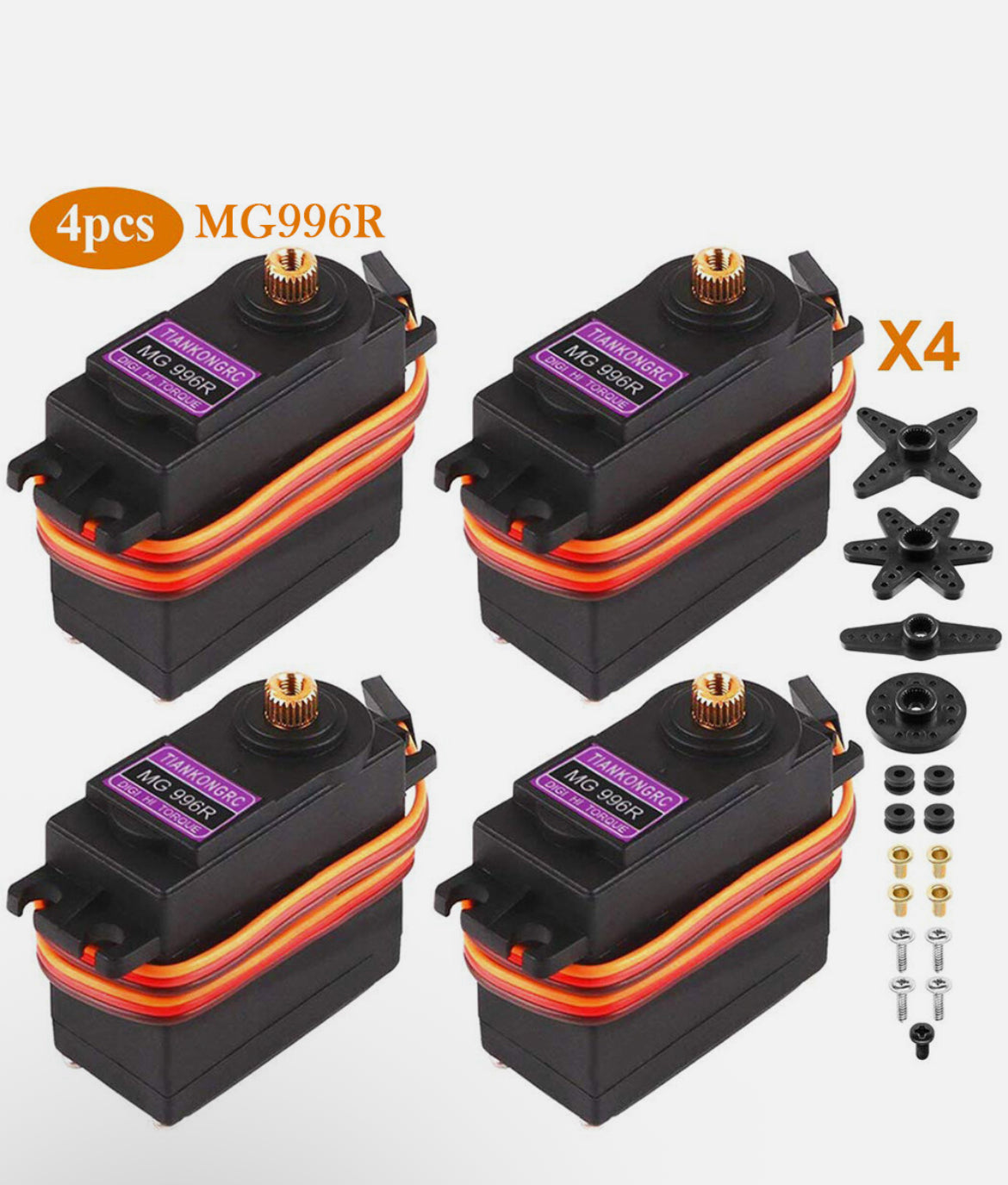

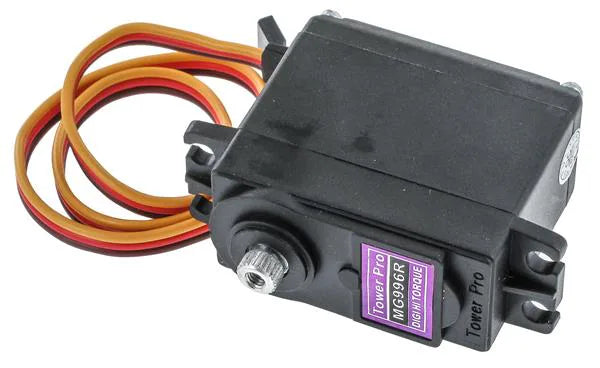

 1. MG996R Servo by Terasic (Part Number: FXX-3037-TOP)

A high-torque, high-performance servo motor included for precision payload and system control.

Highlights:

• Up to 12 kg·cm torque at 6V
• Wide 4.8V–7.2V DC input support
• 180° precision rotation
• Durable metal gear construction
• Fast response time (0.15 sec/60° at 6V)
• Standard PWM control for easy integration

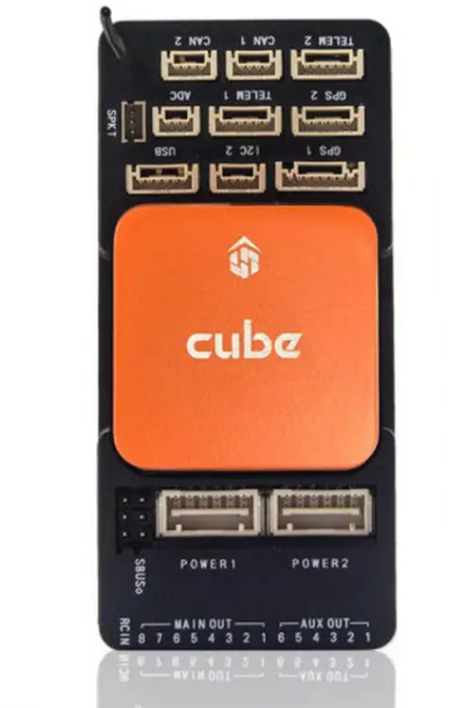

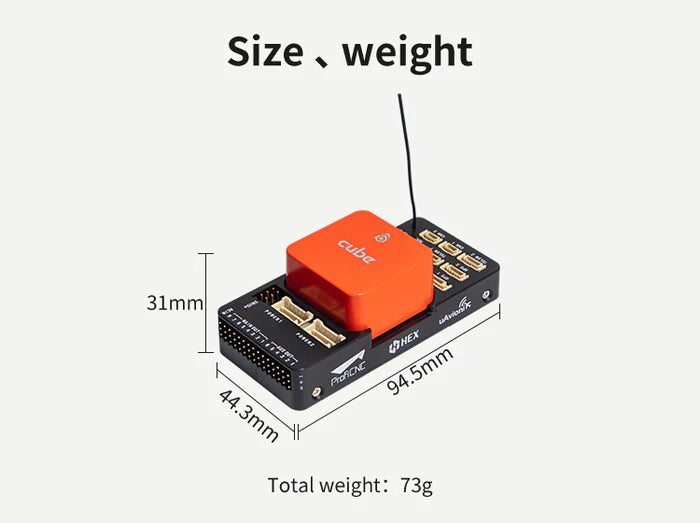

2. Cube Orange Standard Set + ADS-B Flight Controller

An advanced flight controller with integrated aircraft detection and collision avoidance features for safer operations.

Highlights:

• H7 Processor – Powerful onboard computing for smooth autonomous flight.
• ADS-B Receiver (1090 MHz, uAvionix) – Detects and tracks nearby aircraft.
• Automatic Collision Avoidance – Can be configured to autonomously avoid aircraft in exclusion zones set by the pilot.
• ADS-B Carrier Board Integration – Streamlined design with onboard connectivity.
• Built-in IMU Heating System – Ensures reliable performance in extreme cold conditions.

Why Choose the Sky King?

The Sky King is engineered for professionals who need long-range endurance, high payload flexibility, and a reliable flight platform. With included bonuses like the MG996R Servo for precision control and the Cube Orange + ADS-B flight controller for advanced safety, it is more than just a drone — it’s a complete mission-ready solution.
