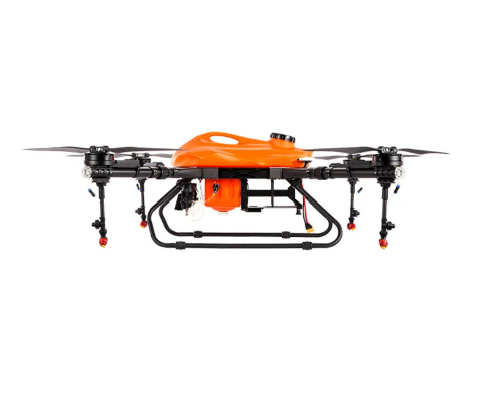

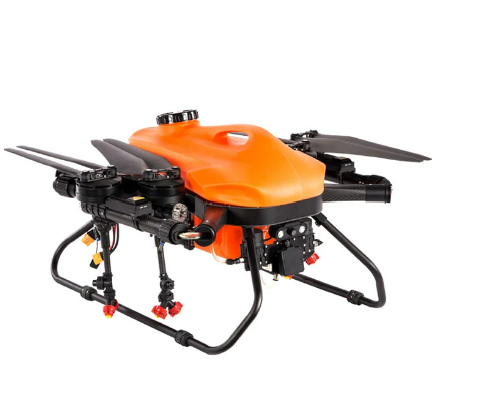

UT-ARRIS F16 4 Axis 16L UAV Agricultural Crop Spraying Drone With SKydroid H12 Radio

The ARRIS F16 is a state-of-the-art 16L 4-axis drone designed specifically for agricultural spraying. Its wide-body structure allows for easy installation of radar and FPV camera modules at the front of the drone, enhancing both navigation and safety. The water tank spans the entire upper plate and is pluggable, making it easy to remove for quick maintenance and refills.

Specifications:

• Diagonal Wheelbase: 1500mm
• Size:
  • Folded: 720x780x490mm
  • Unfolded: 1165x1175x490mm
• Frame Weight:
  • 14.3kg (without battery)
  • 20.5kg (with battery)
• Takeoff Weight: 37kg
• Hovering Time:
  • 20 minutes (at 20.5kg takeoff weight)
  • 10 minutes (at 37kg takeoff weight)
• Battery: 12S 44.4V 22000mAh
• Working Area: 16-20 acres per flight
• Flight Time: 8 to 12 minutes per flight
• Water Tank Capacity: 16L
• Water Tank Weight: 1.5kg

Spraying System:

• Pressure Nozzle: Dual nozzle
• Nozzle Model: VP11002
• Pump Flow Rate: 3.5 L/min
• Working Voltage: 44.4V
• Spraying Width: 4-6 meters

Battery and Charging:

• Battery: 12S 44.4V 22000mAh (optional)
• Charging Port: AS150U

Key Features:

• Modular Design: The ARRIS F16 features a quick-plug design with a 16L pluggable water tank, making refilling and maintenance effortless.
• Wide-Body Symmetrical "X" Design: The true X-shaped wide-body design ensures a centered center of gravity, minimizing liquid movement during operation for greater stability.
• Durable Construction: Built with a combination of carbon fiber and aluminum alloy, the F16 is both strong and lightweight, ensuring stability and reliability during flight.
• Foldable Arms: The foldable arms improve portability and ease of transport.
• Advanced FPV Camera: Equipped with an FPV camera featuring a 120° FOV lens, allowing real-time monitoring of the drone’s surroundings via the radio transmitter.
• Night Operations: The drone is equipped with two 8W navigation lights for safer nighttime operations.
• Obstacle Radar: An integrated radar system measures the relative distance to obstacles, allowing the drone to effectively avoid collisions during flight.
• Remote Control: The Skydroid H12 1080P Digital Video Data Transmission Transmitter provides long-range remote control with a 5.5-inch high-brightness screen, capable of clear, low-latency video transmission up to 30km. The system is ideal for agricultural drones and other industrial applications.
• Flight Control System: The K++ flight control system, building on the classic K3A, offers enhanced compatibility and redundancy, ensuring superior performance and reliability.

Exclusive Agricultural App: The ARRIS F16 comes with a dedicated agricultural app, providing precise control and efficient operation. The app allows for customized polygon routes on unregulated terrain and supports autonomous operation. It also includes route memory and spray area calculation features, enabling more accurate dosage control for optimized spraying efficiency.

The ARRIS F16 is the perfect choice for farmers and agricultural professionals looking to enhance their spraying operations with precision, durability, and efficiency.

Package Includes:

• F16 Axis 16L Agriculture Drone Frame x 1
• Spraying System x 1
• T10 Propulsion System x 4 (2 CW + 2 CCW)
• Jiyi K++ Flight Controller with Radar Combo x 1
• Skydroid H12 Remote Control x 1
• Tattu 12S 22000mAh Intelligent Battery x 2 (Optional)
• Skyrc PC1500 Dual Channel 12S Battery Charger x 1 (Optional)

Notes:

1. This package includes all components necessary to build a fully operational drone; however, the drone is not pre-assembled. You will need to assemble and tune it yourself.
2. Due to the built-in battery in the H12 remote control, it will be shipped separately.
3. The Tattu 12S 22000mAh battery will be shipped using a separate method due to shipping regulations.
