UT-Here3 GNSS (M8P) With IStand
UT-Here3 GNSS (M8P) With IStand
Couldn't load pickup availability
MPN: HX4-06206
Previous MPN: HX4-06111
Manufacturer: CubePilot

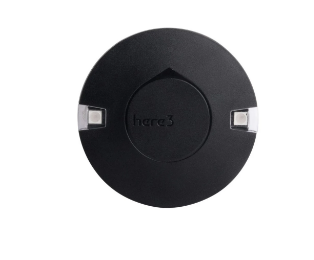

The CubePilot Here3 GPS is a cost-effective, high-precision GNSS system designed to deliver centimeter-level positioning accuracy in ideal RTK mode. Fully compliant with the 2023 NDAA regulations, this GNSS/GPS module is a robust option for various applications. Featuring improved dust and water resistance compared to the original Here+, the Here3 is built to endure tough conditions (note: not guaranteed to be waterproof).
The Here3 is powered by an STM32F302 processor and utilizes the CAN protocol, offering high data rates, real-time capabilities, noise immunity, and upgradeability. It comes equipped with a range of built-in sensors, including a compass, gyroscope, accelerometer, and an LED status indicator for user convenience.
Features:
- RTK Mode Support: Achieves centimeter-level positioning accuracy under optimal conditions.
- Durability: Enhanced dust and water resistance compared to the original Here+.
- High-Precision Sensors: Includes a compass, gyroscope, accelerometer, and status LED.
- CAN Protocol: Benefits from noise immunity, high data rates, and real-time features.
Specifications:
| Feature | Here 3 | Here3+ |
|---|---|---|
| Receiver Type | u-blox high precision GNSS modules (M8P-2) | u-blox high precision GNSS modules (M8P-2) |
| Satellite Constellation | GPS L1C/A, GLONASS L1OF, BeiDou B1I | GPS L1C/A, GLONASS L1OF, BeiDou B1I |
| Positioning Accuracy | 3D FIX: 2.5m / RTK: 0.025m | 3D FIX: 2.5m / RTK: 0.025m |
| Processor | STM32F302 | STM32H757 |
| IMU Sensor | ICM20948 | ICM42688, RM3100 |
| Navigation Update Rate | 8 Hz | 8 Hz |
| Communication Protocol | DroneCAN 1Mbit/s | DroneCAN 8Mbit/s |
| Operating Temperature | -40°C to 85°C | -40°C to 85°C |
| Dimensions | 68mm x 68mm x 16mm | 68mm x 68mm x 16mm |
| Weight | 48.8g | 51.8g |
Note: For an ideal RTK setup, pair with the Here+ Base available in our store.
